XYZ Proturn SLX 425 Lathe (2013)

Lot 1 - XYZ Proturn SLX 425 Lathe (2013)

Description:

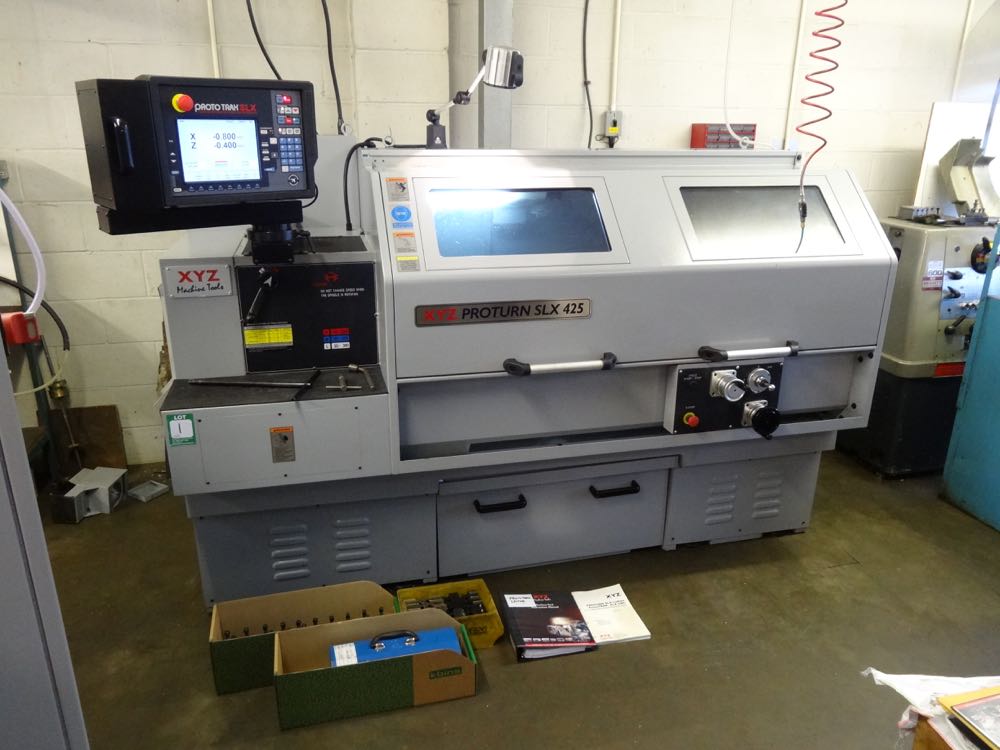

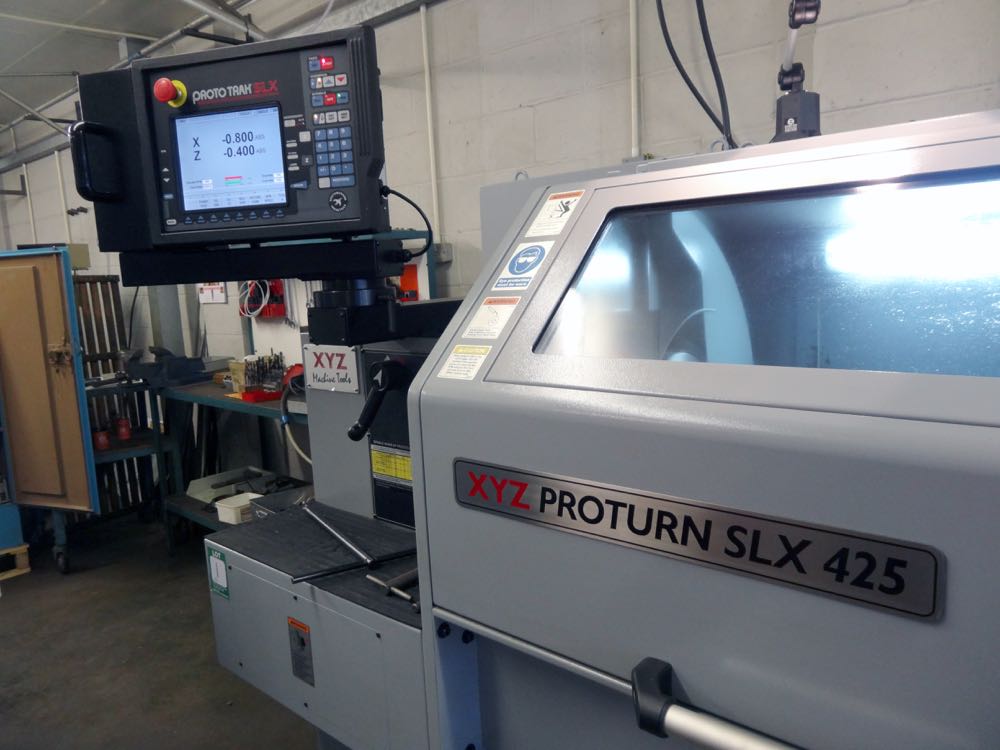

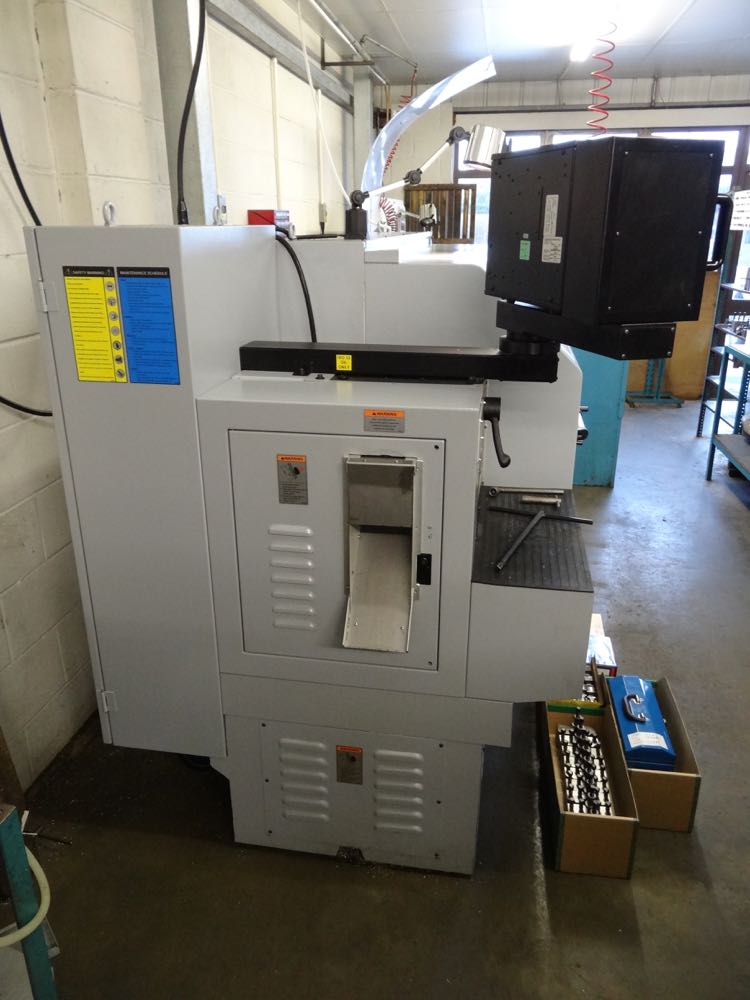

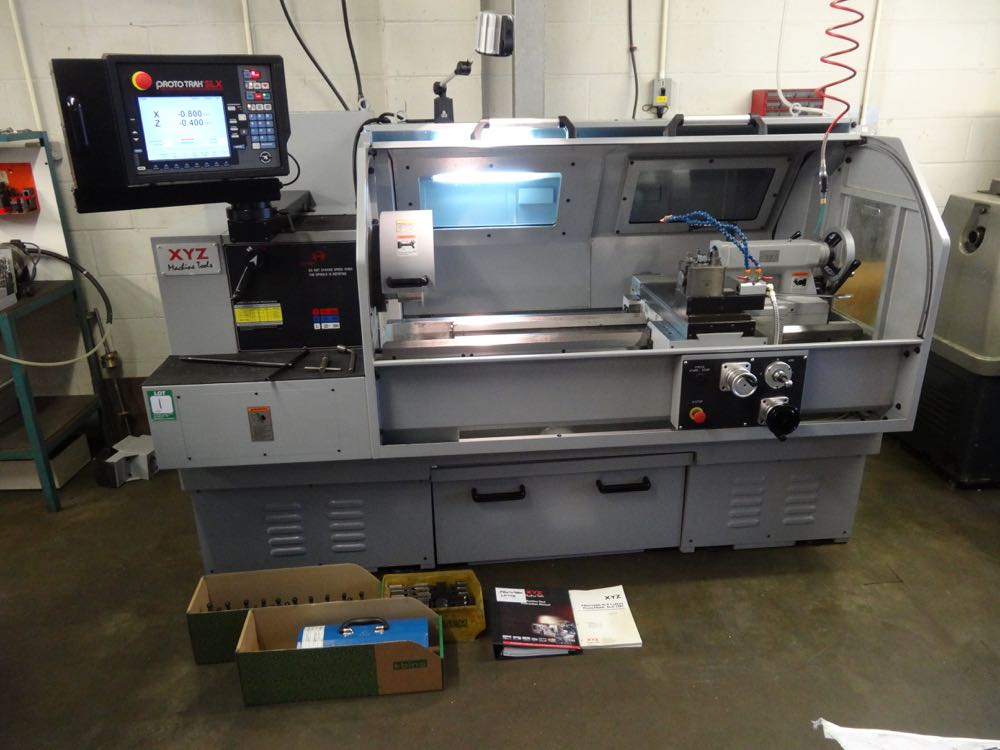

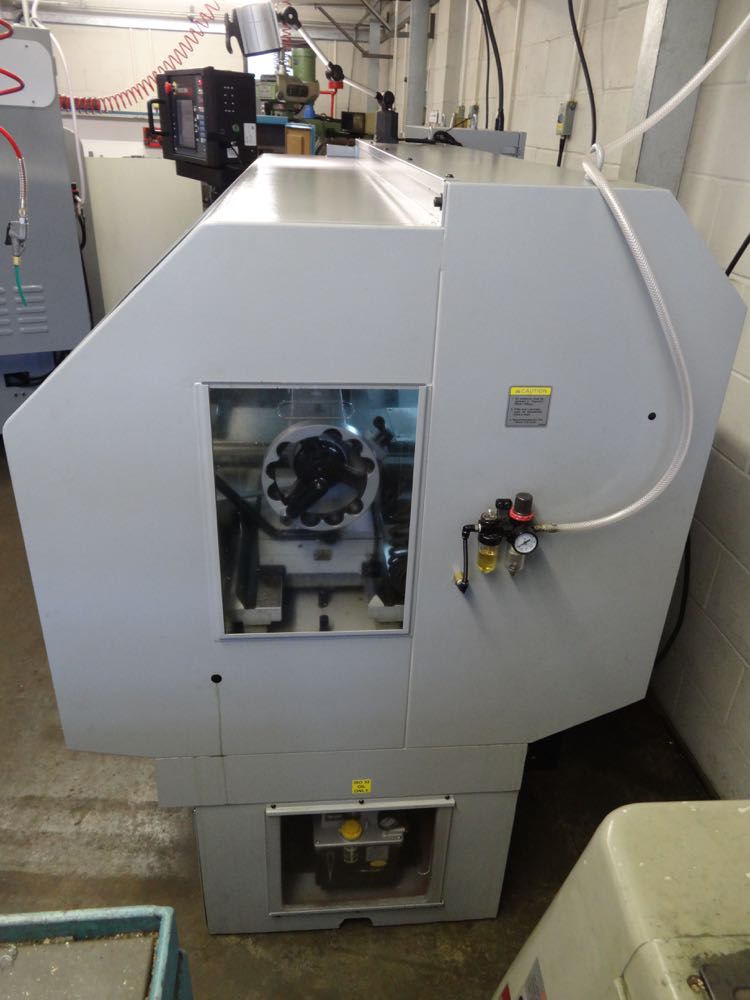

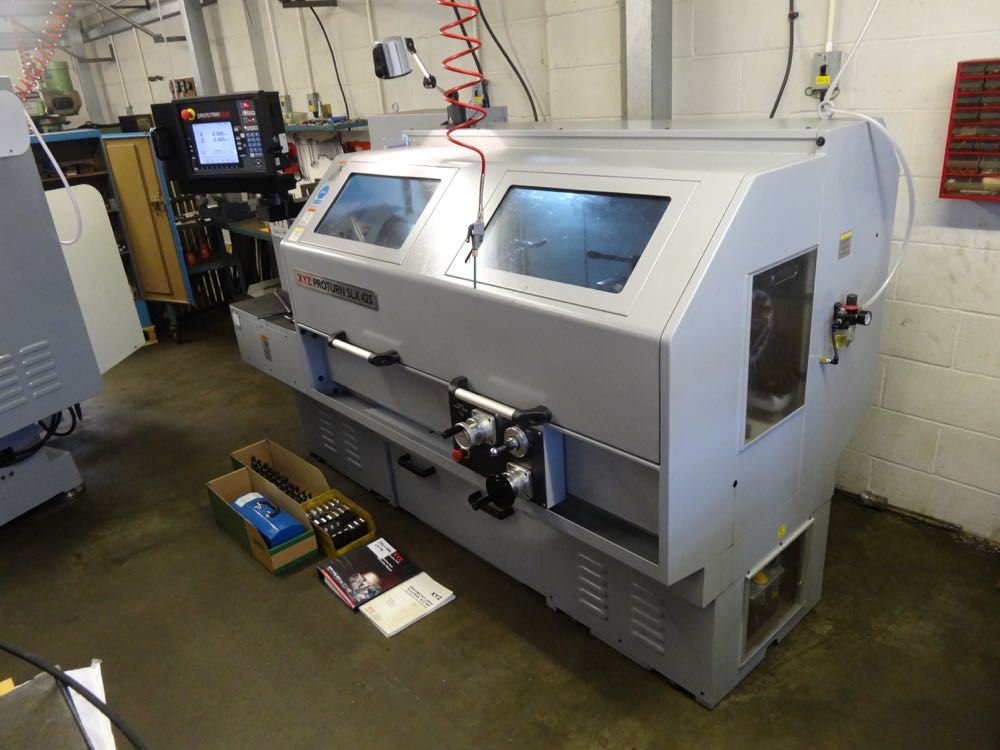

XYZ Proturn SLX 425 Lathe

S/n:599
Year: 2013
Model: Proturn SLX 425
Footprint: 2600 x 1500 x 1750mm
Weight: 3500kg

Specifications:
Distance between centers: 1250mm
Swing over bed: 480mm
Swing over cross slide: 257mm
Cross slide travel: 205mm
Tool selection max: 25 x 25

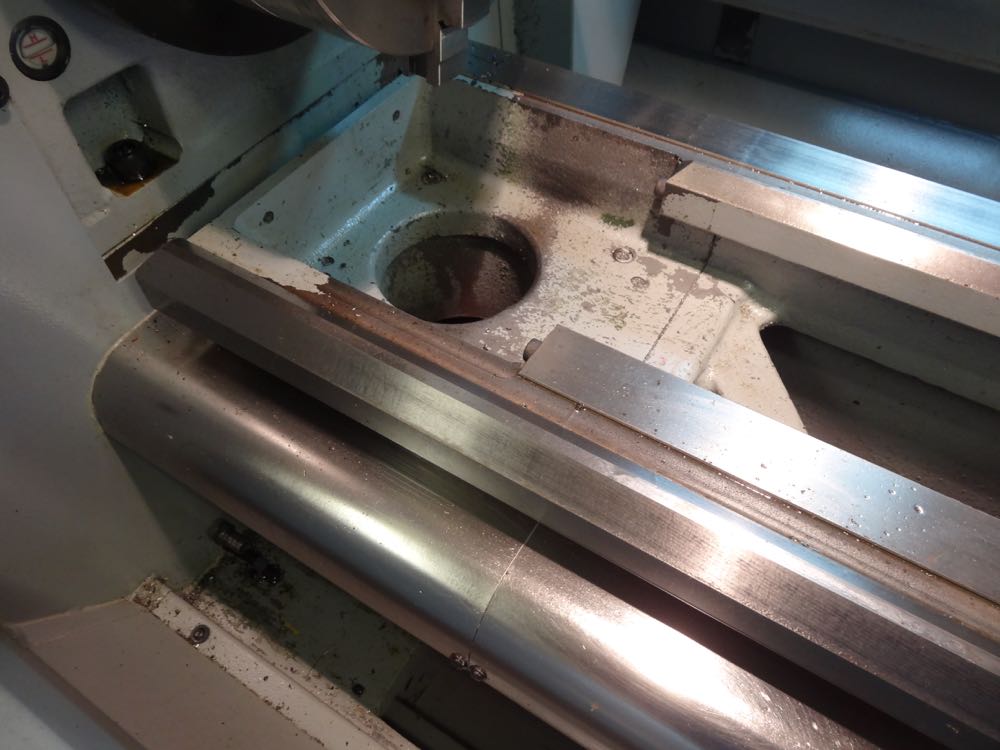

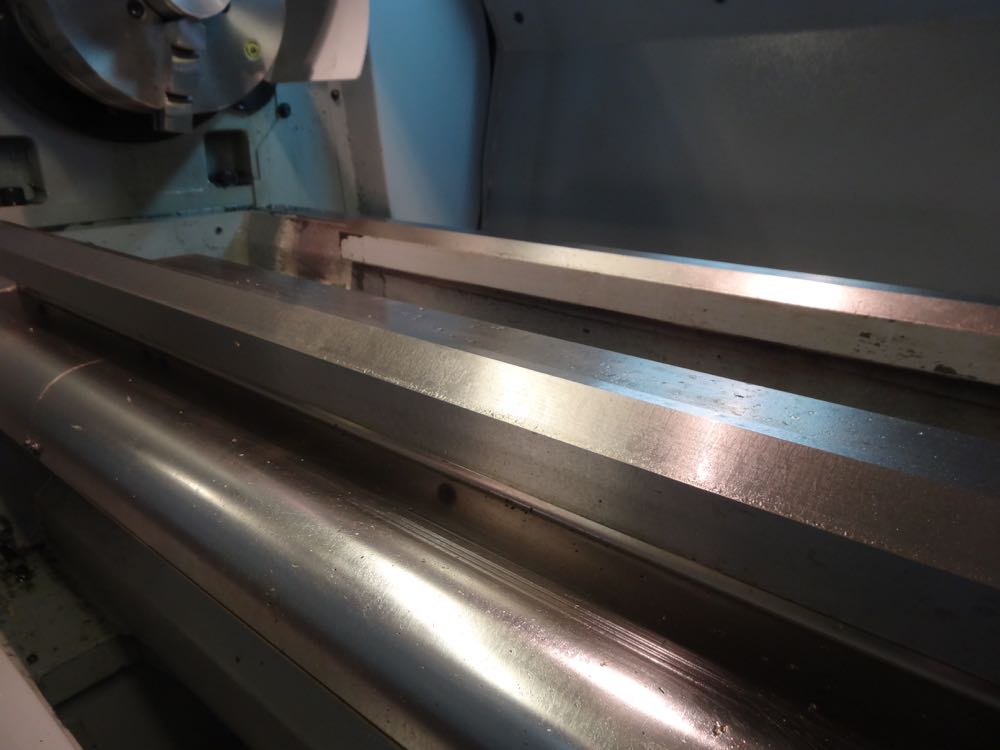

Width of Bed: 370
Spindle:
Nose (Camlock): D1-8
Through hole: 80

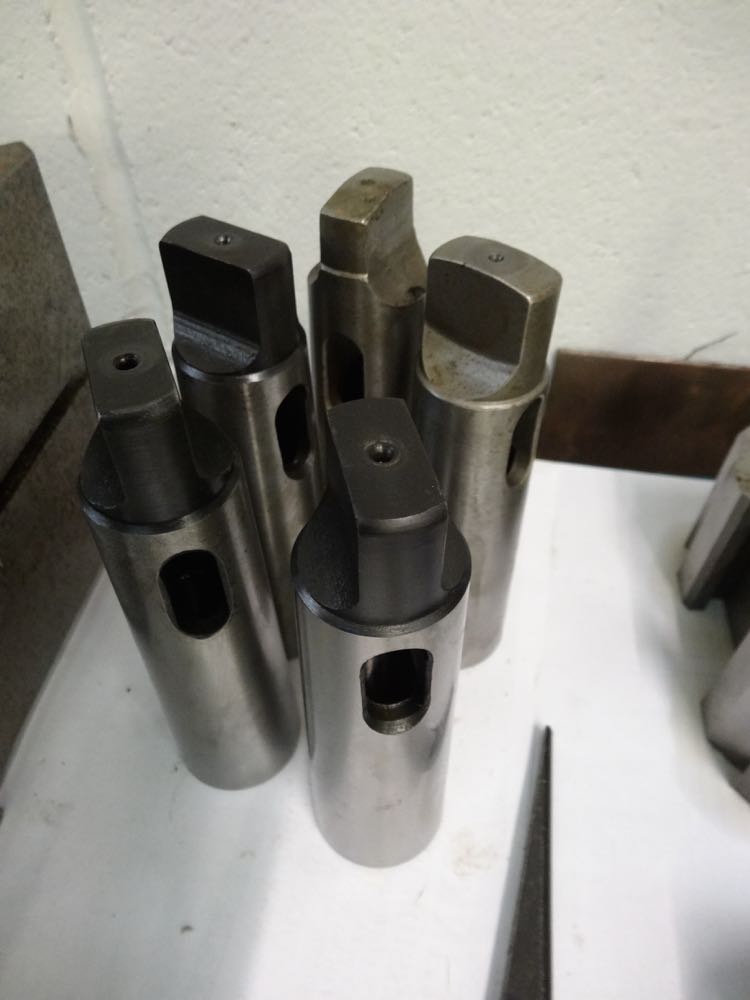

Taper: MT7 in bush / Speed range: 25 - 2500,
3 Speed gearbox
Spindle dia at front bearing: 105 / motor power: 10 HP
Power requirements: 32 Amp

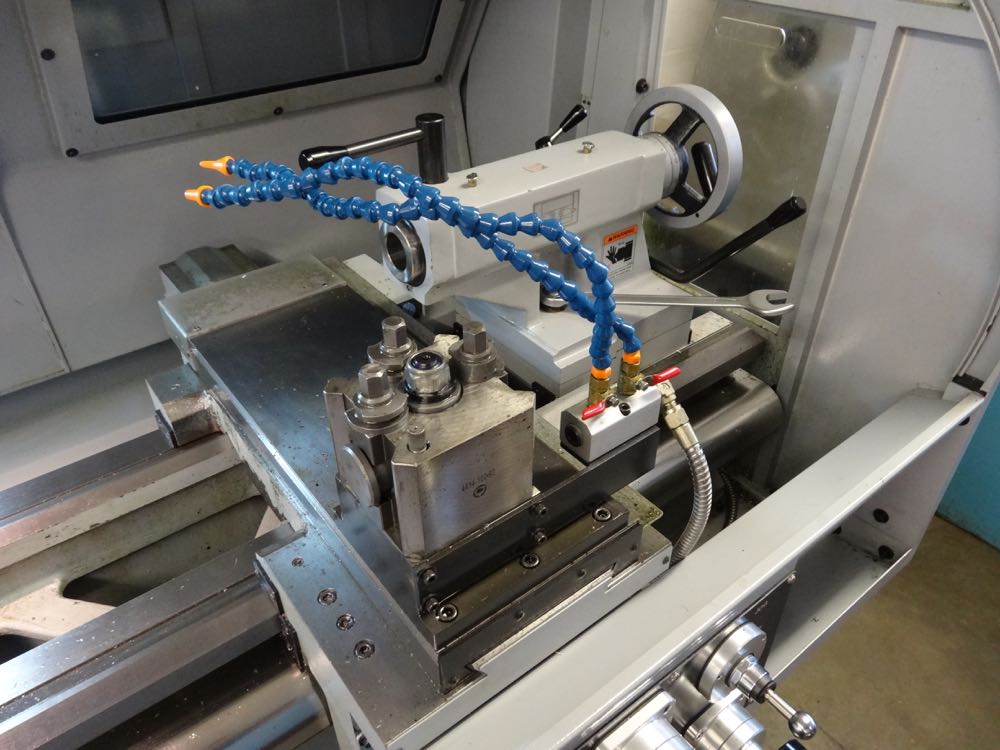

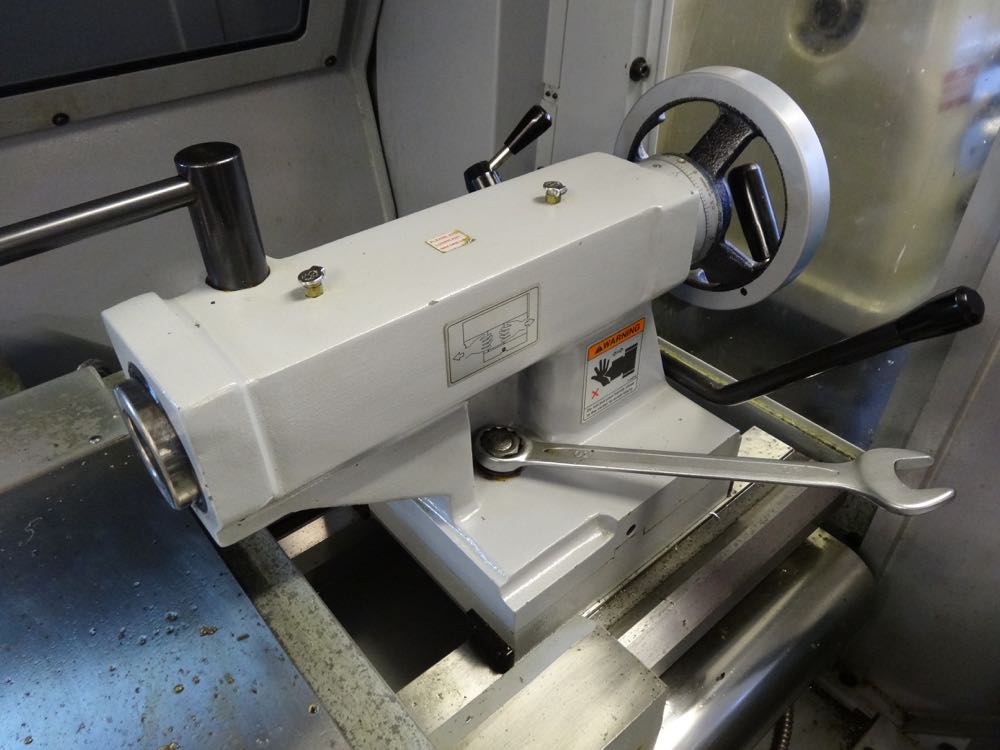

Tailstock Quill travel: 196/ Quill dia: 75 / Quill taper hole: MT5
Max rapid feed X /Y: 6300/ 2500

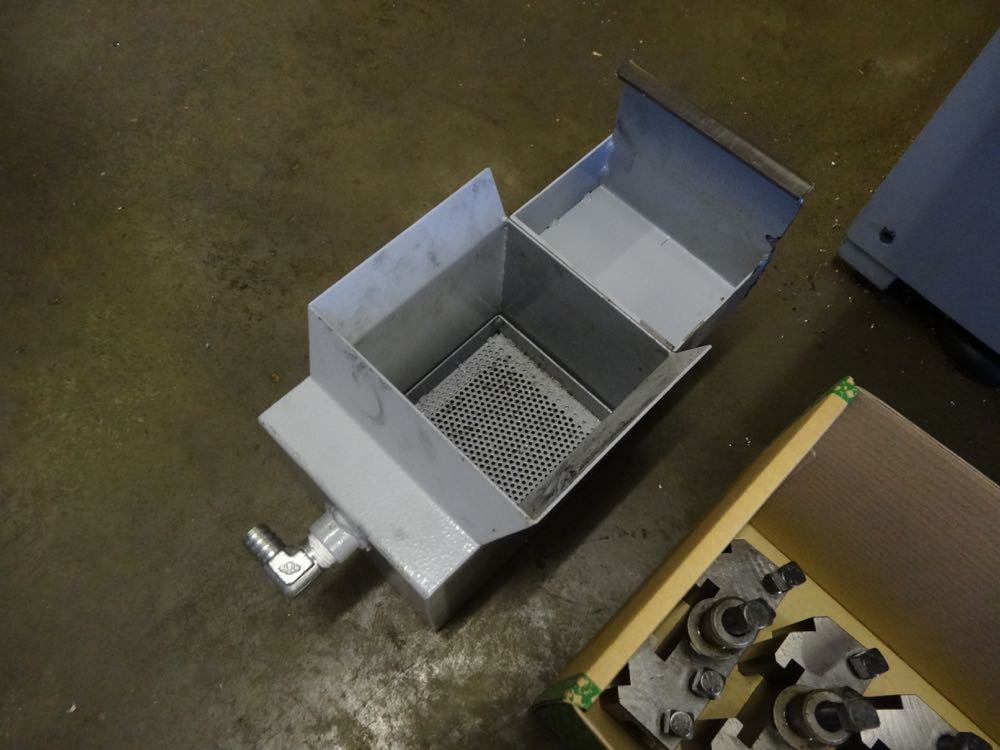

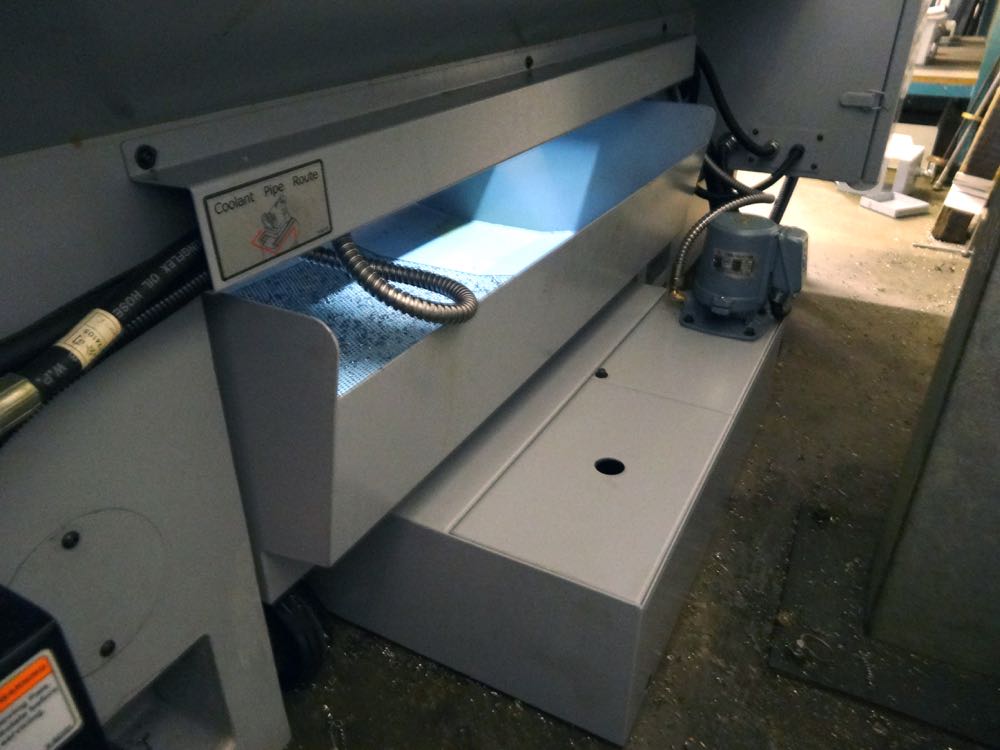

Coolant pump motor: 1/8HP
Way surface hardness HRC48-52

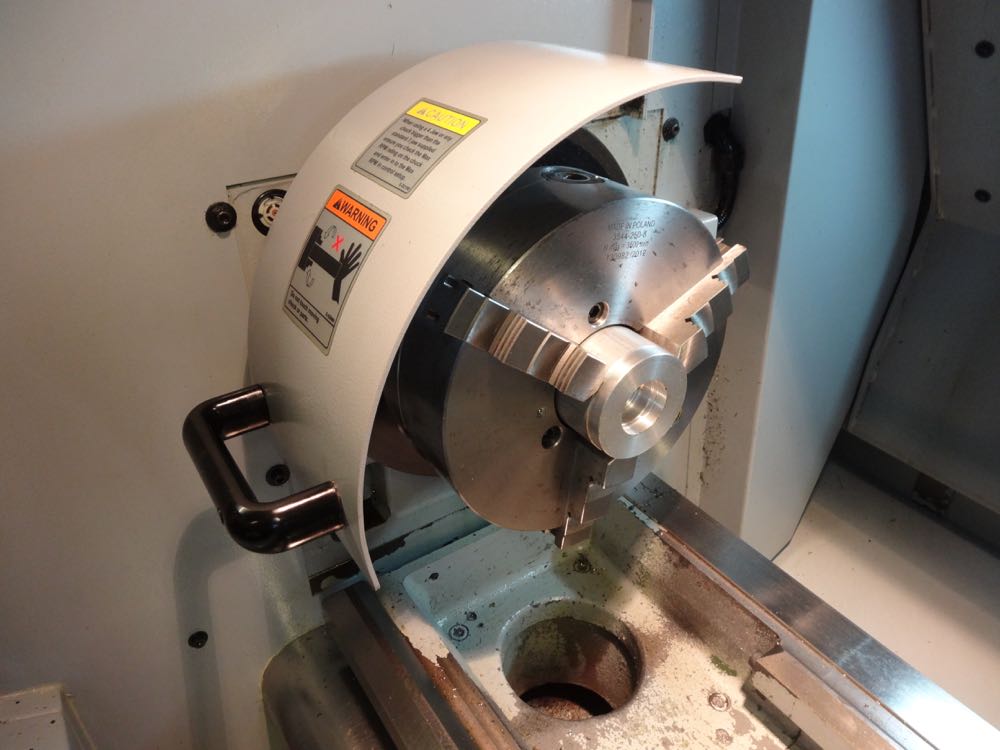

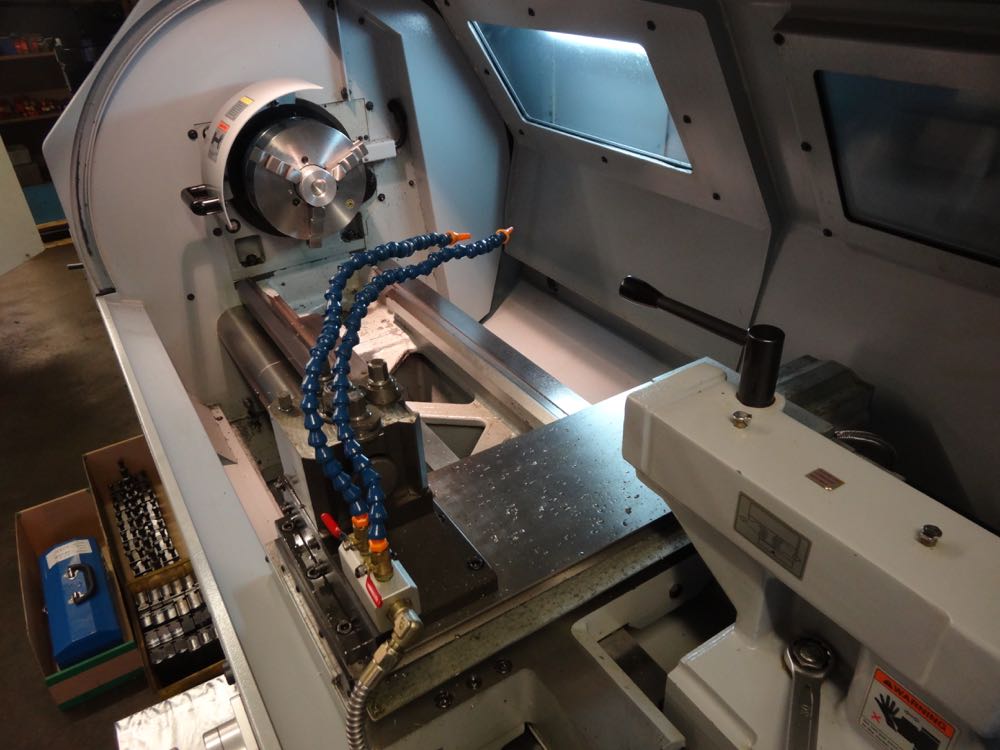

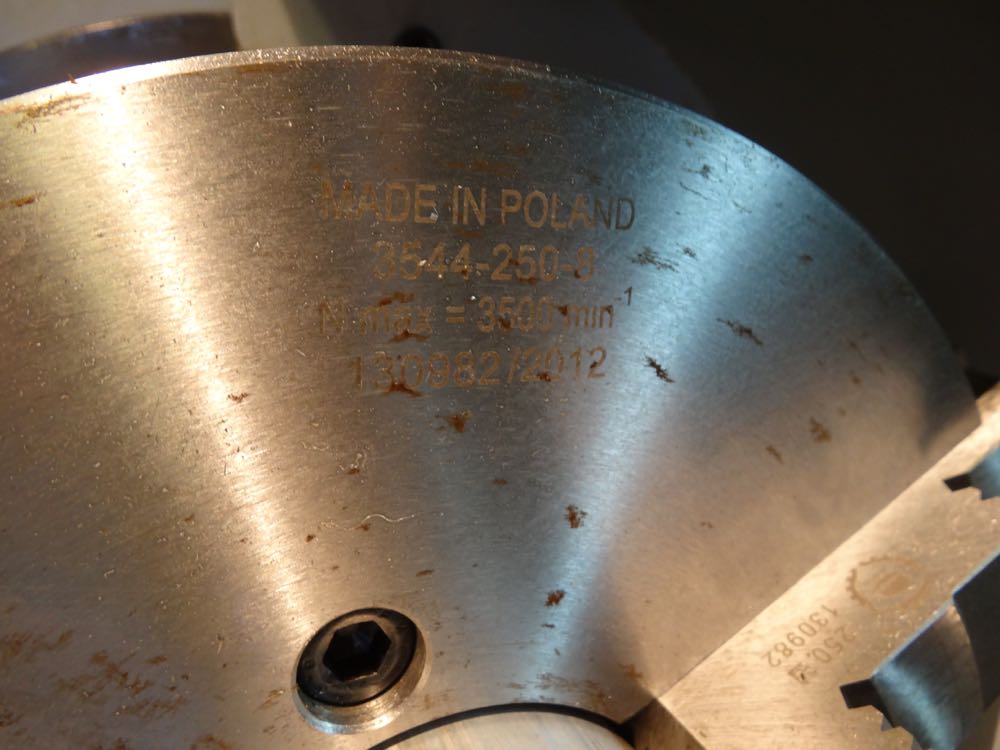

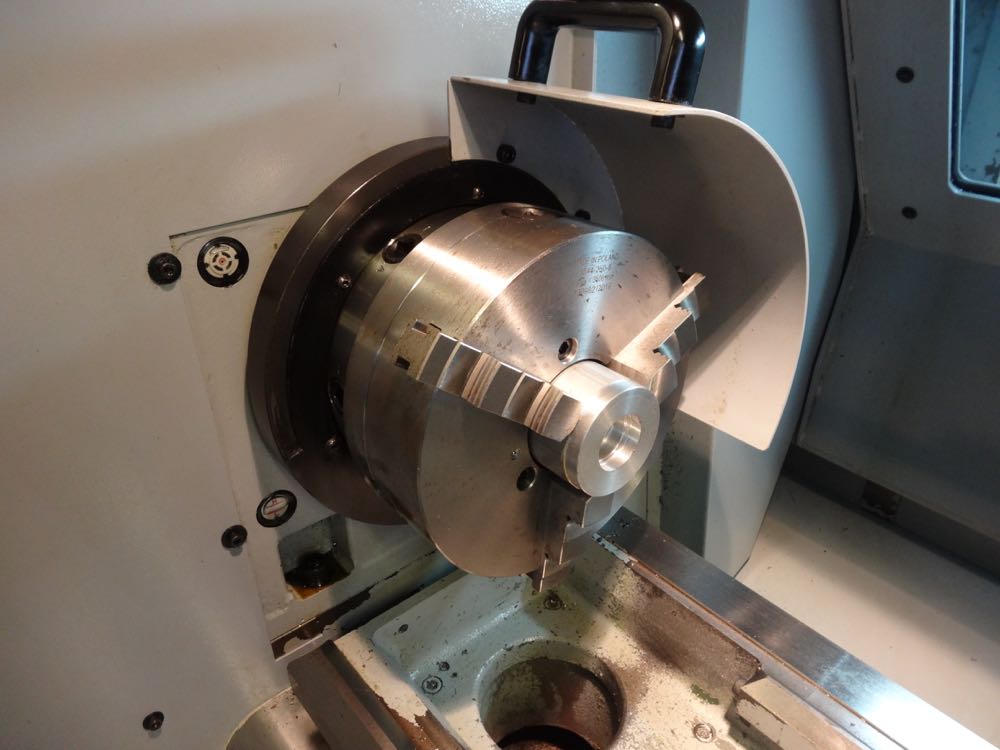

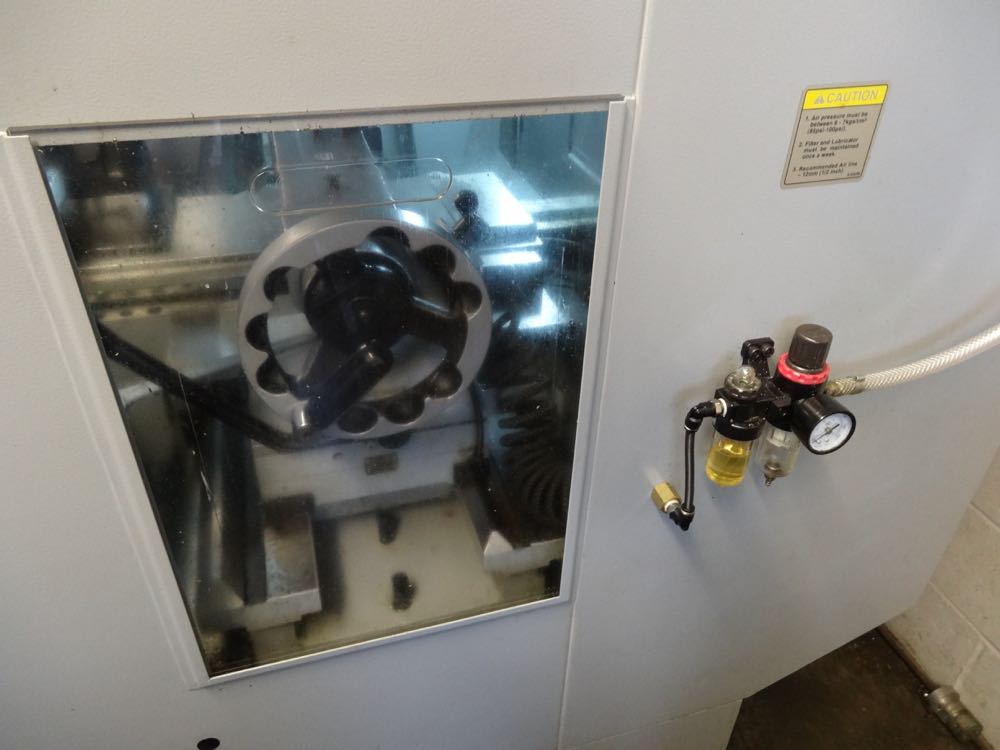

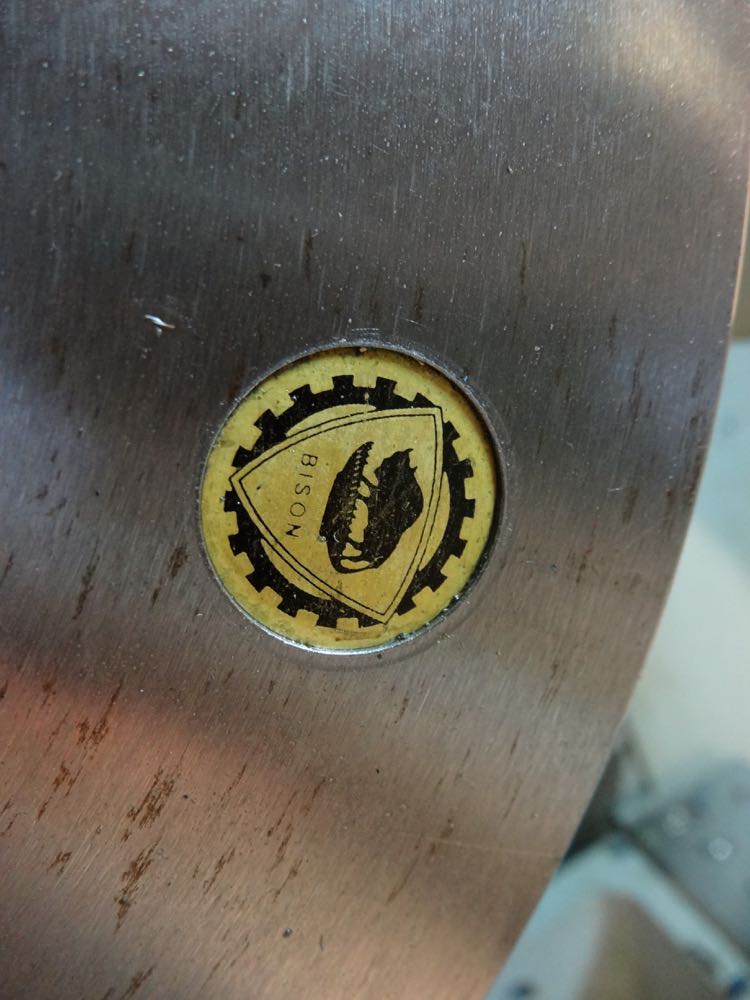

Chuck: Camlock mounted 3 jaw self centering chuck:
Size: 250mm, through hole: 80mm, spindle: 80mm

Head Stock lubrication: Wet sump with external cooling
Air ride tailstock
Chuck guards

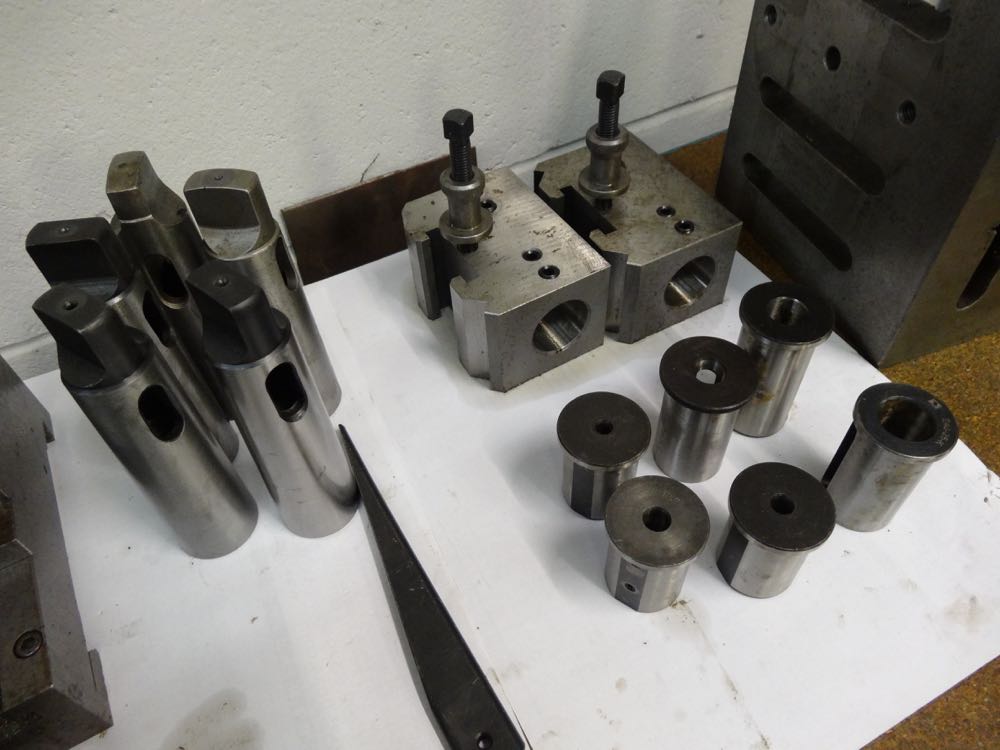

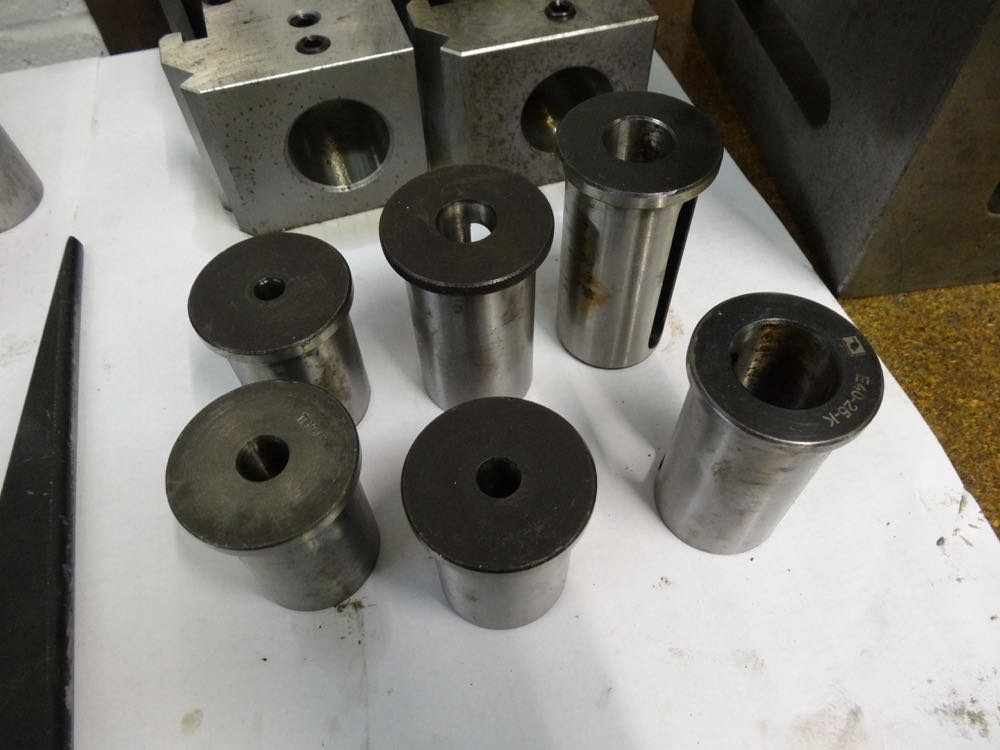

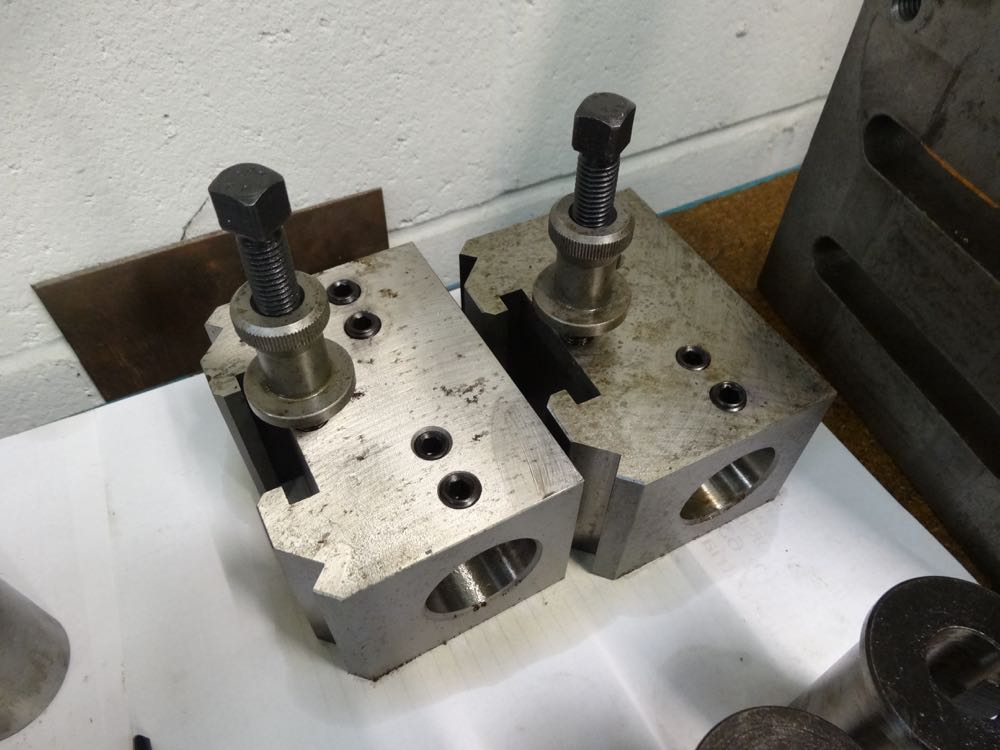

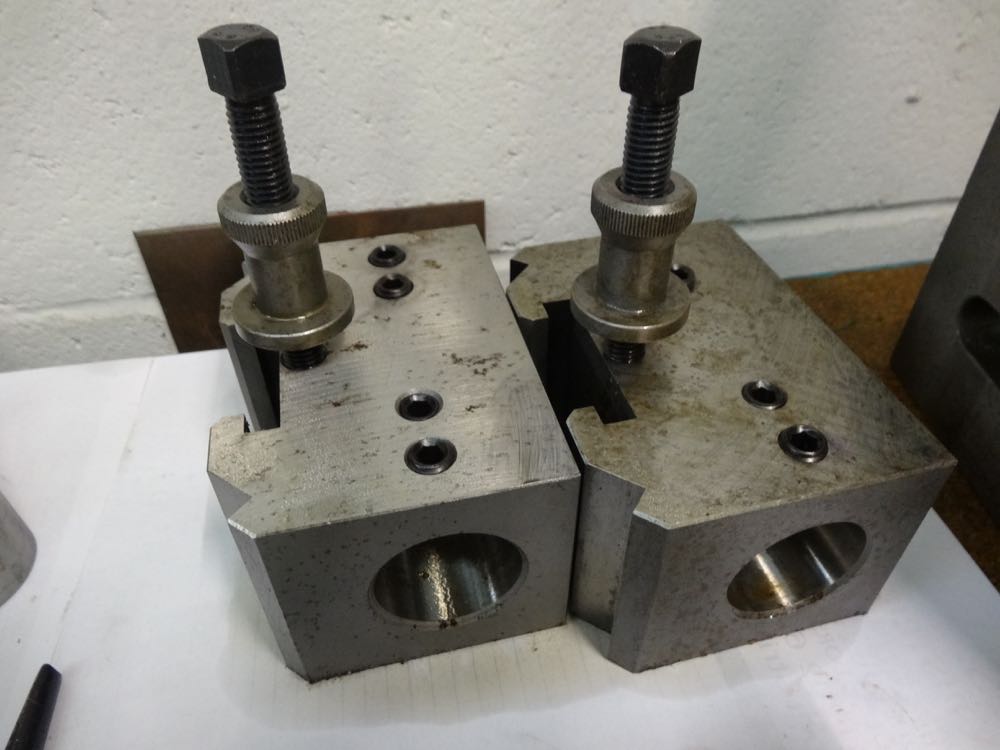

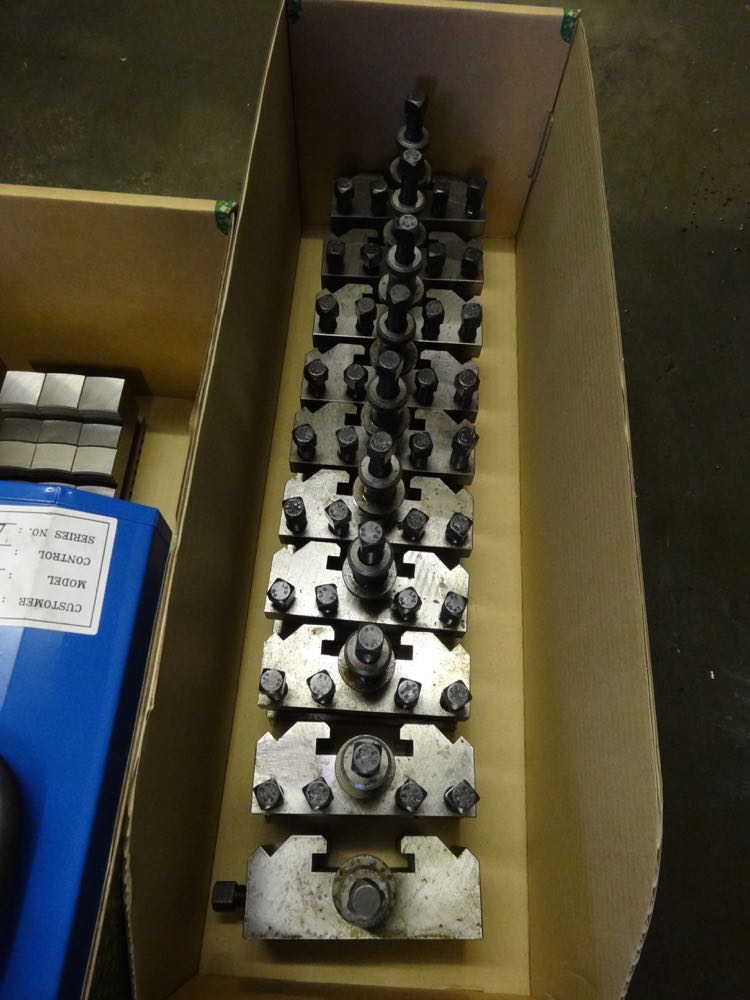

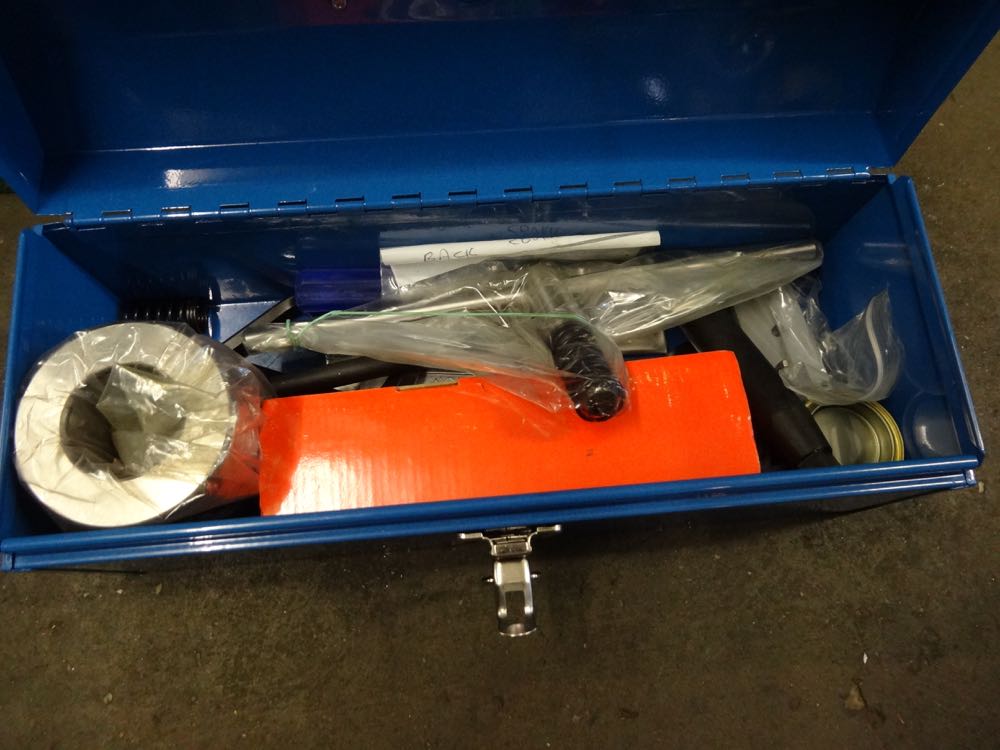

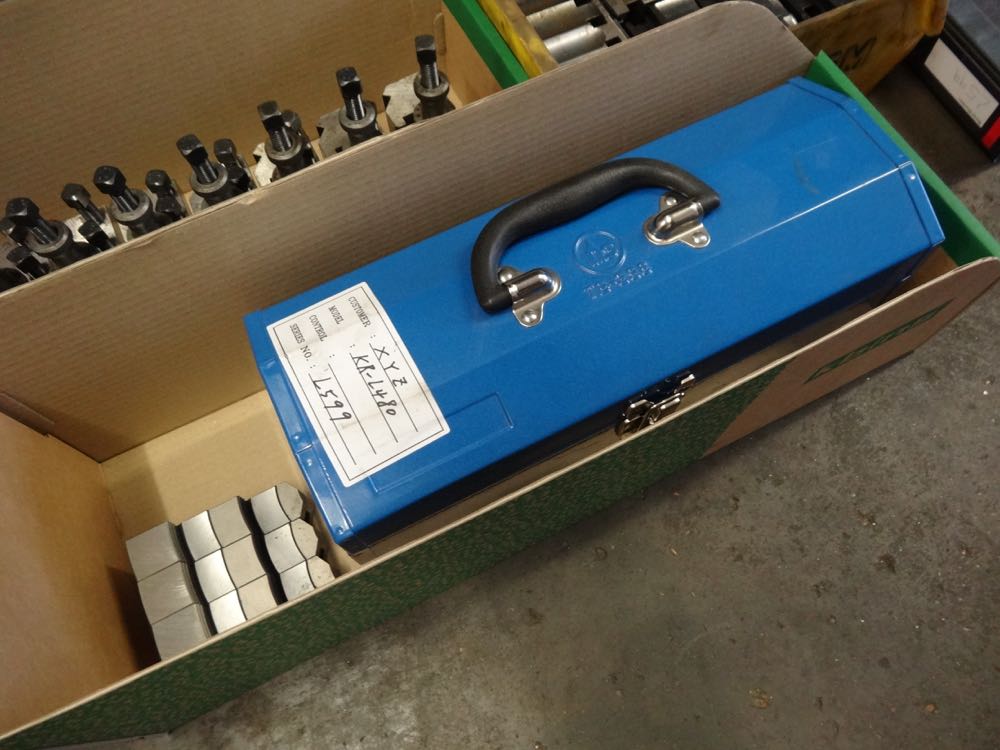

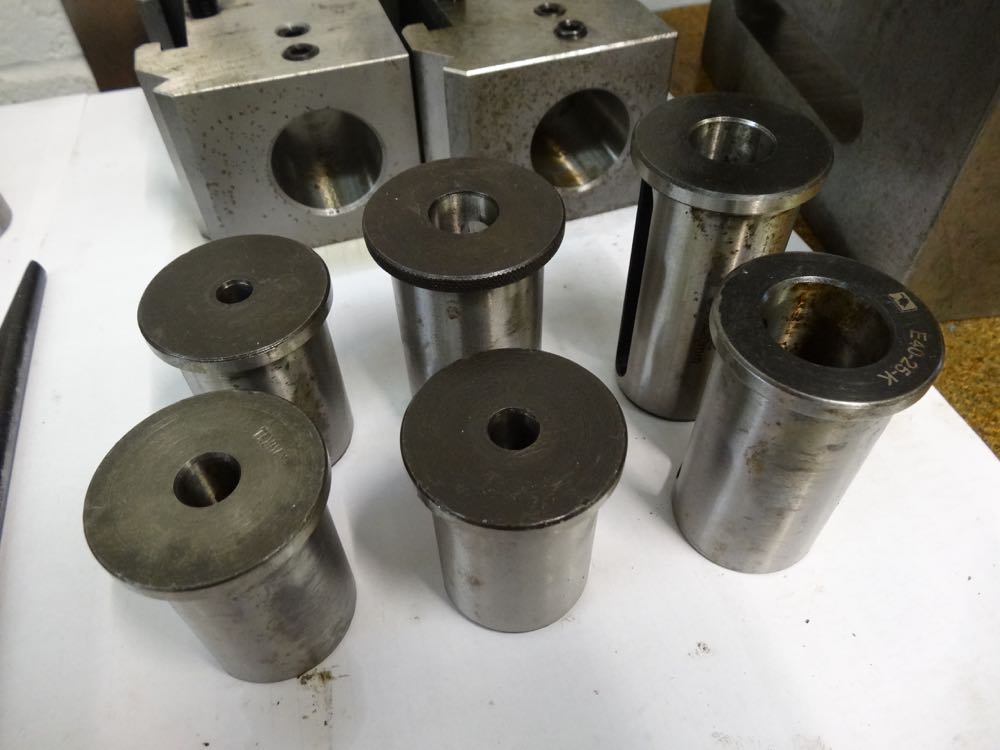

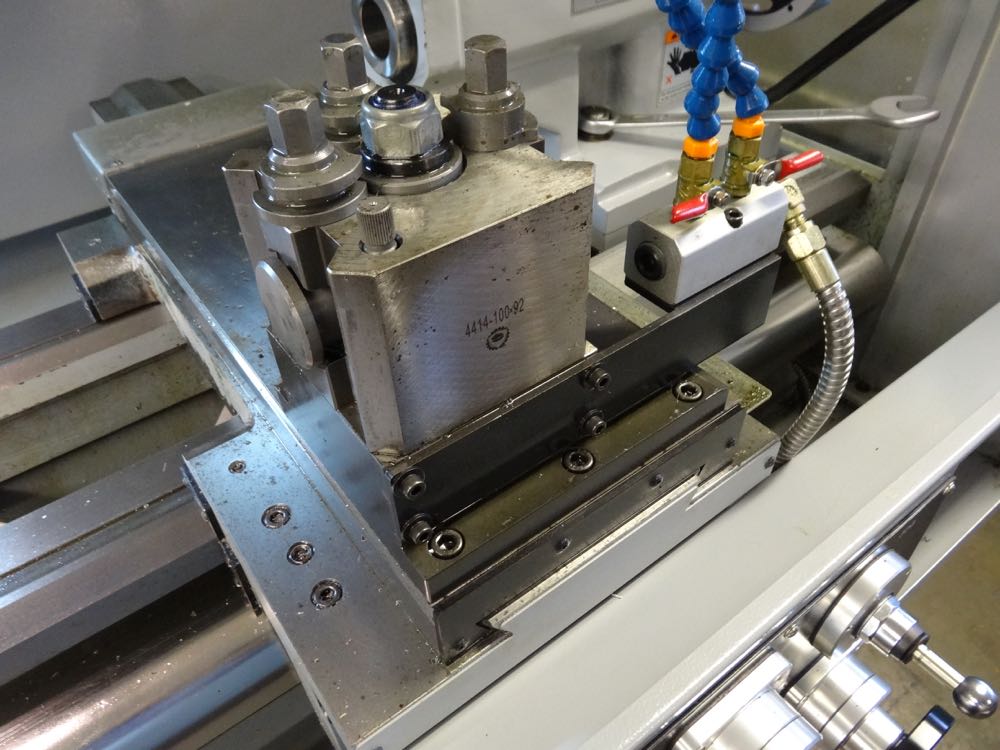

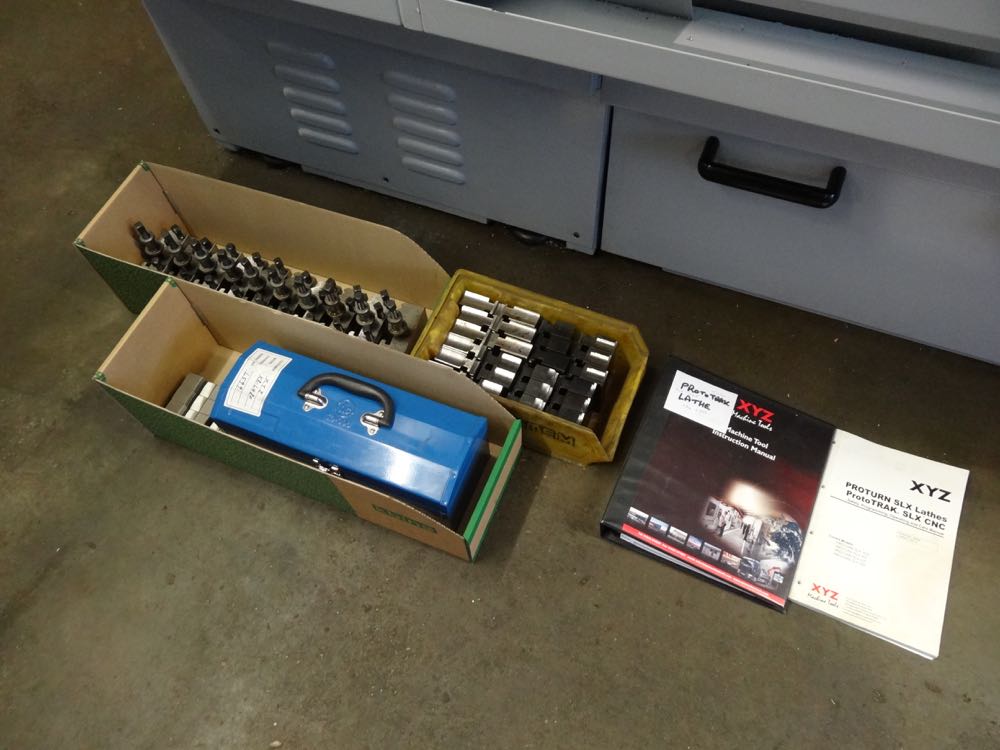

Dickson tool kit

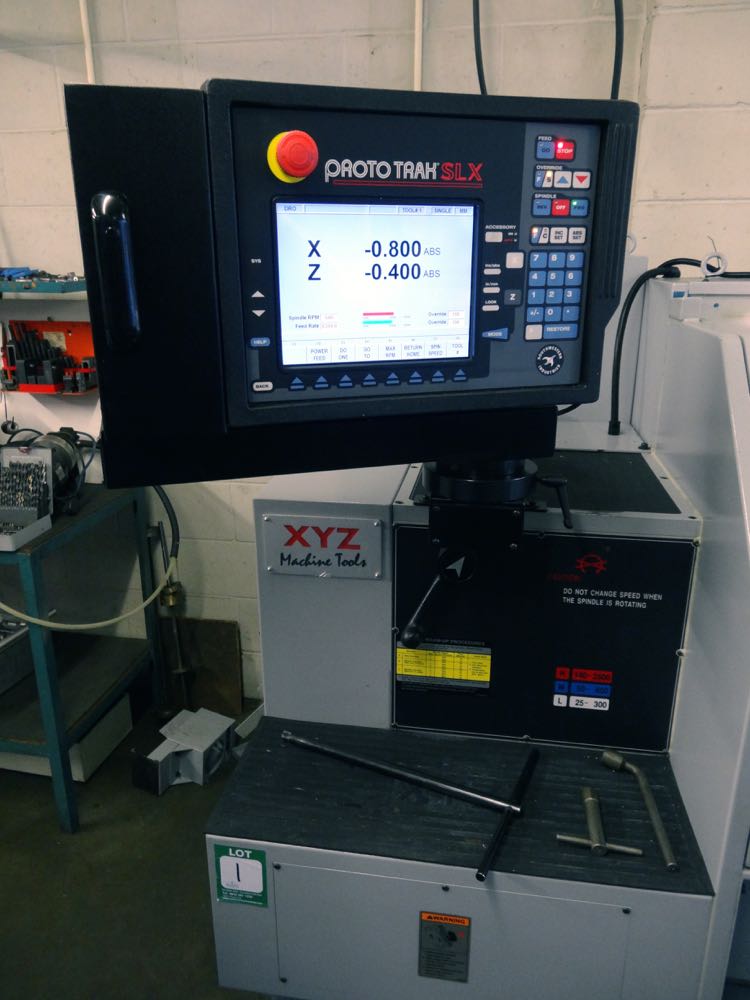

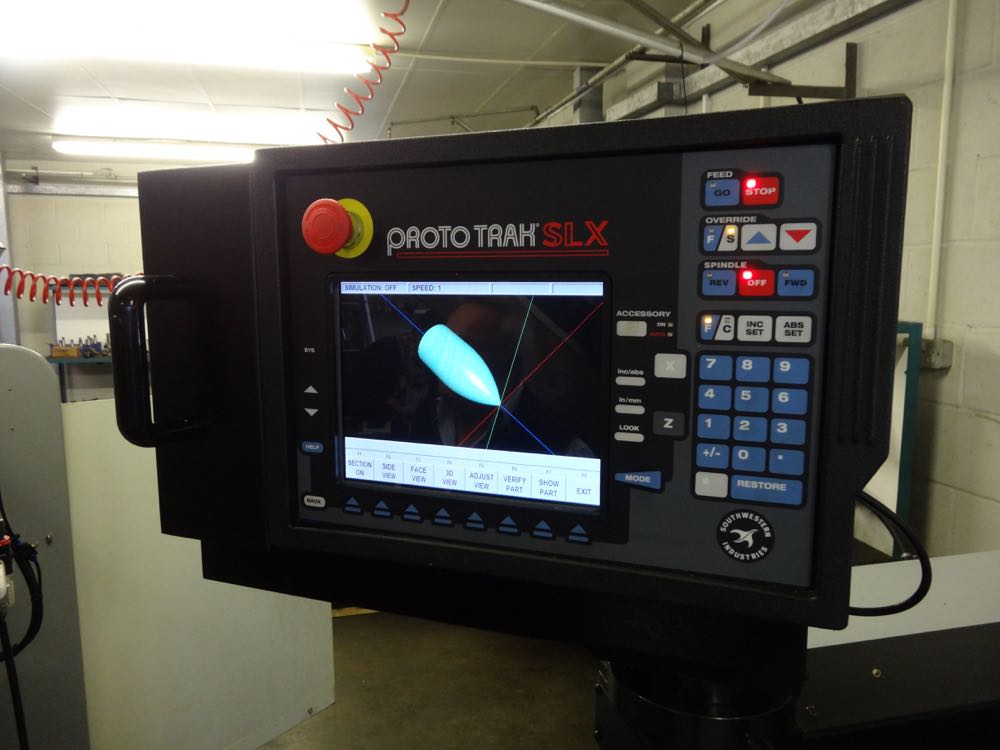

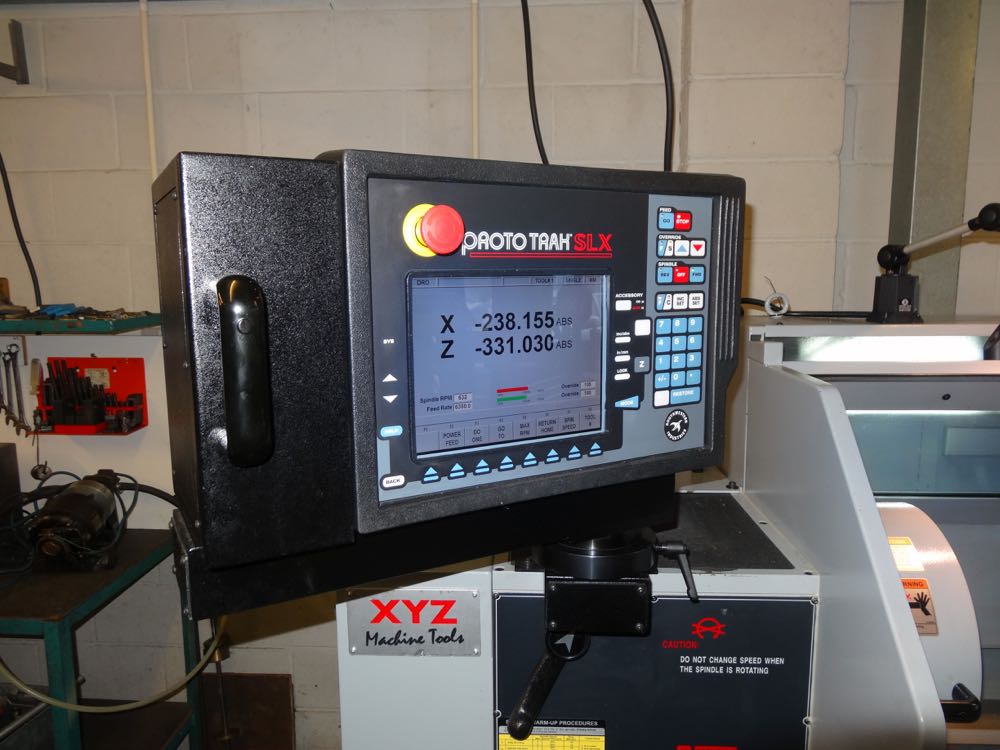

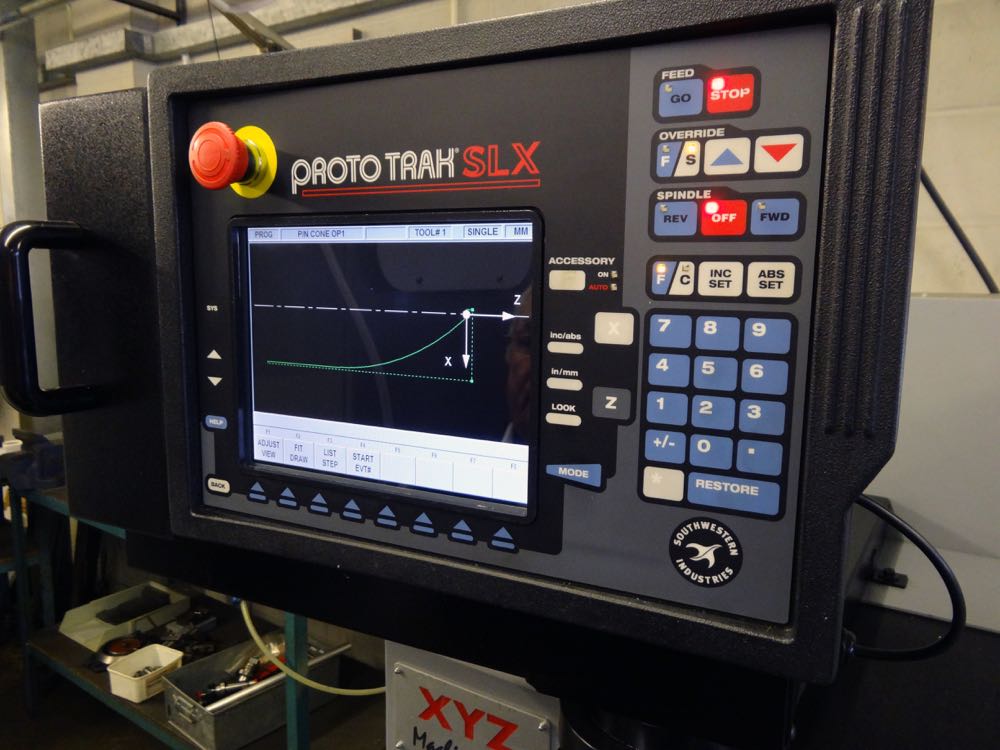

Control Specifications:
2 axis CNC, 2 axis DRO

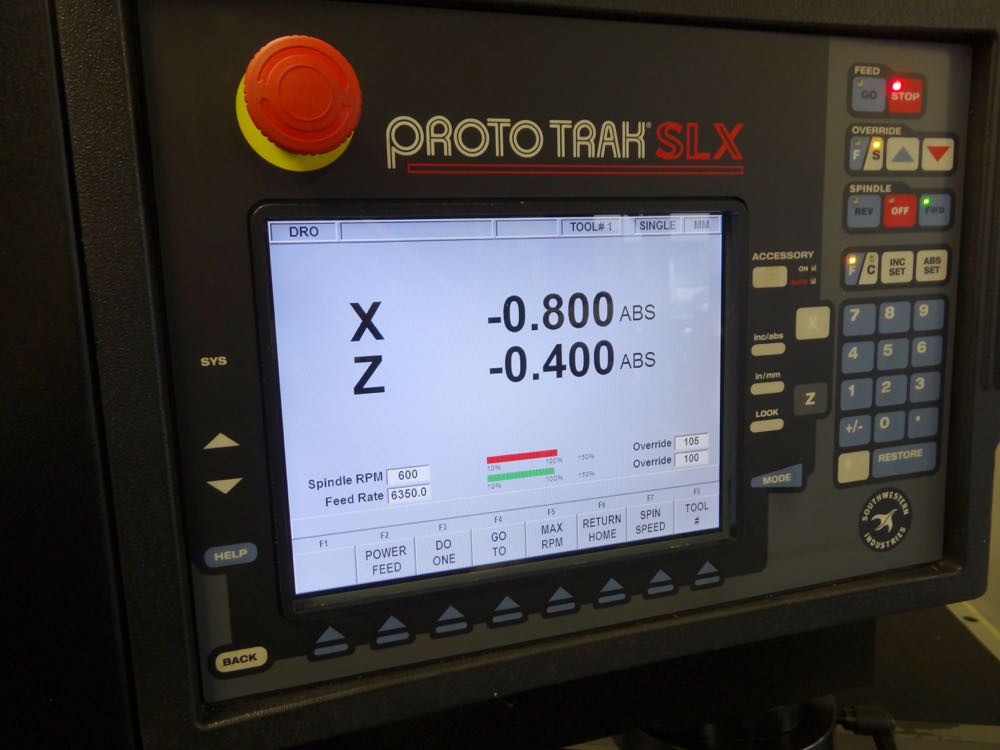

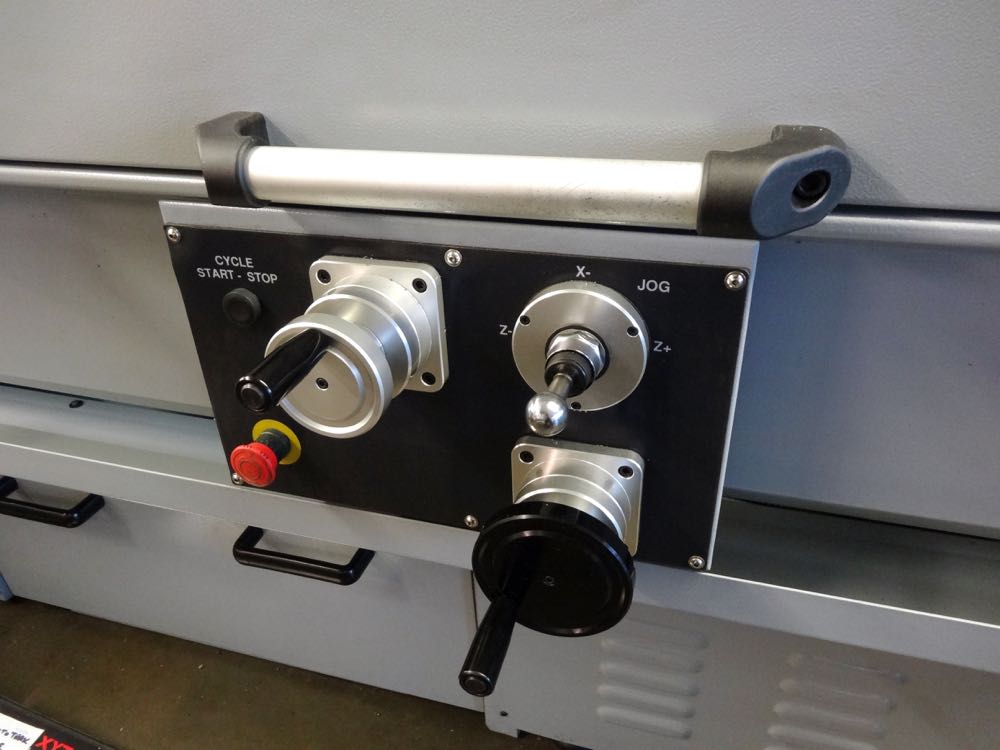

Electronic hand wheels for manual operation, 10.4” colour active matrix screen
industrial grade Celeron processor, 256Mb Ram

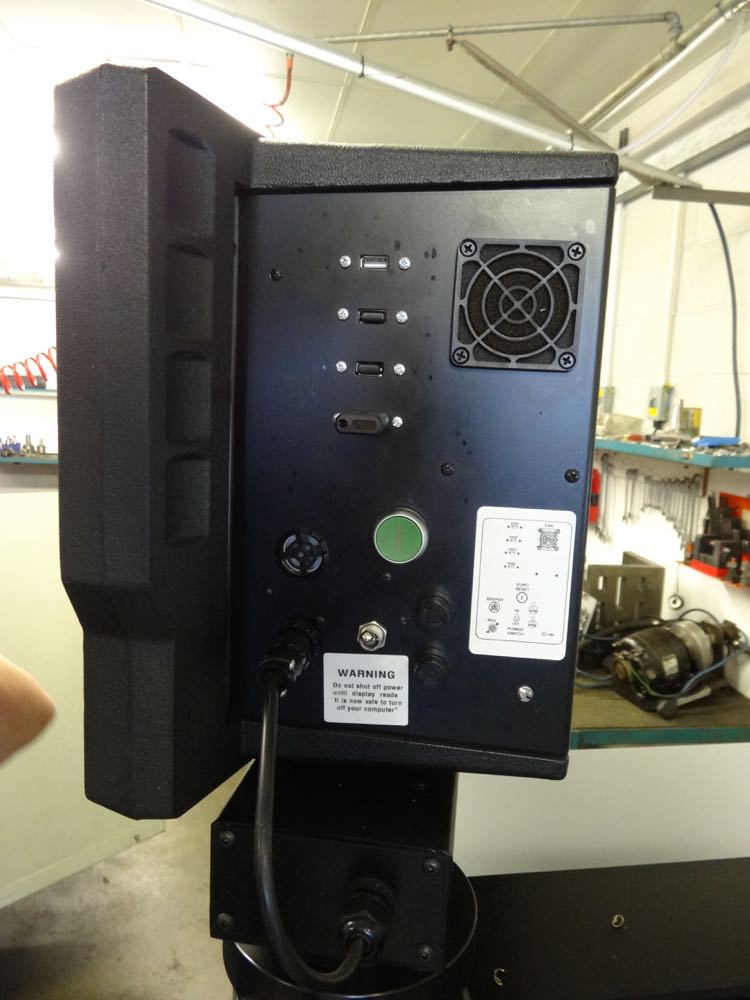

P/ 2 keyboard connector/ 2 USB connectors, override of programme feedrate
LED status lights built into display/ TEAC floppy drive

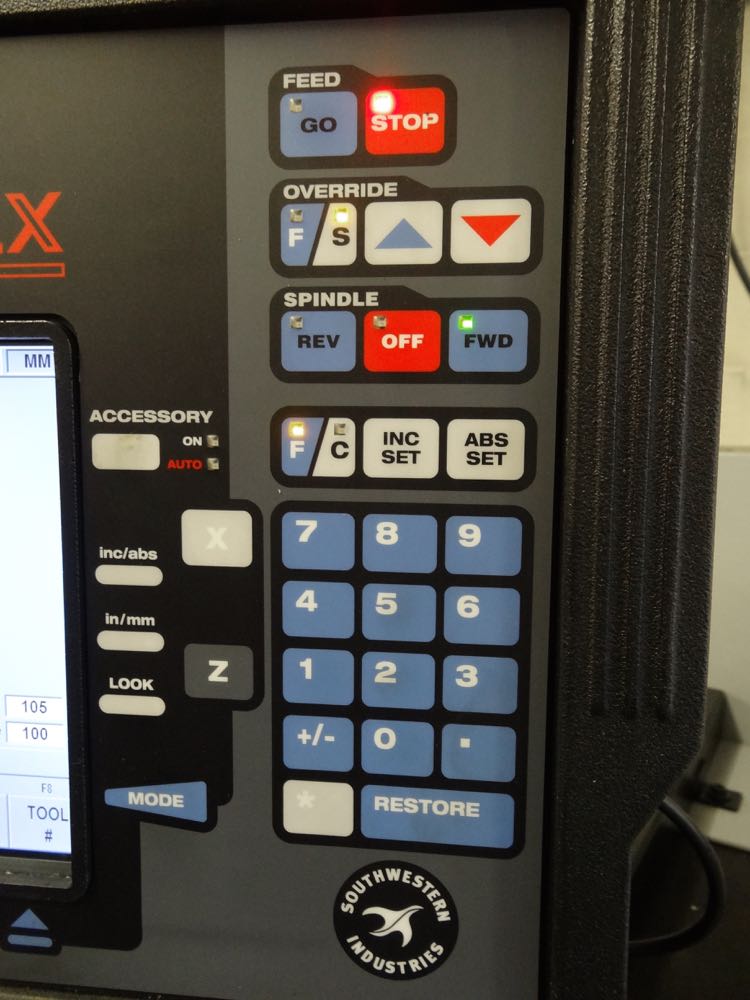

Joystick for convenient jog/ clean front panel with few hard keys

Software Features- general operations
Clear, uncluttered screen display/ prompted data input
English language - no codes/ soft keys/ windows operating system
Colour graphics with adjustable views
Inch/mm selectable/ Convenient modes of operation

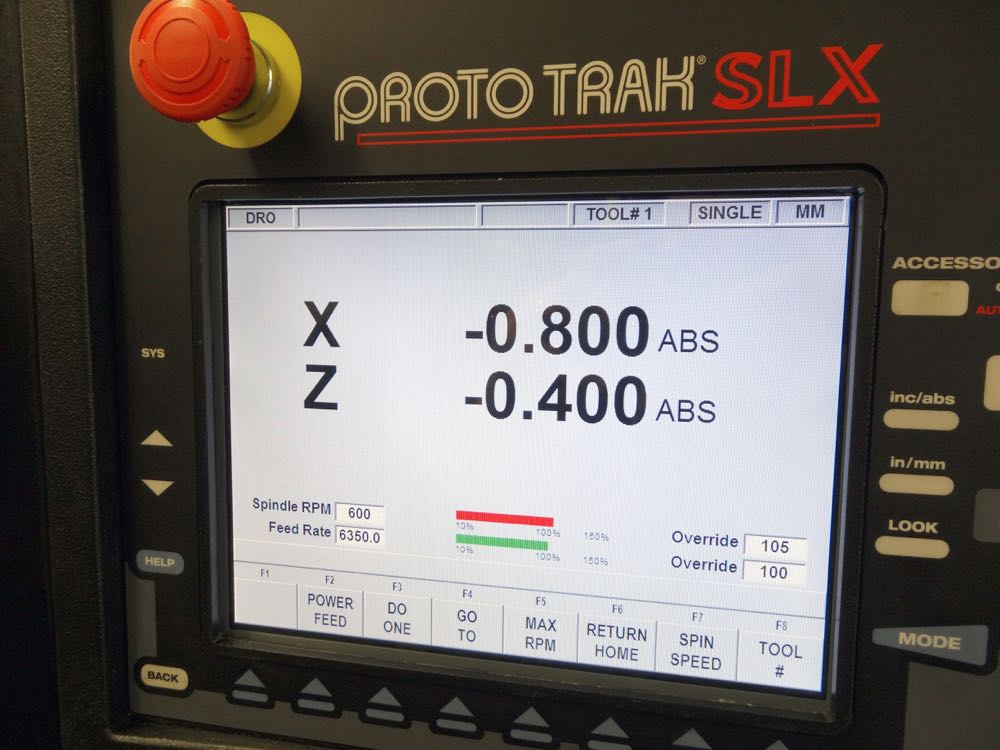

DRO Mode features for manual machining:
Incremental and absolute dimensions
Jog at rapid with override
Powerfeed X or Z/ Tapers of any angle/ Radius / Fillet
Spindle speed setting with override servo return to home
Tool offsets from library

Programme mode features:
Geometry based programming
Incremental and absolute dimensions
Automatic tool nose radius compensation/ circular interpolation
Linear interpolation/ Look-graphics with a single button push
List step- graphics with programmed events displayed
Alphanumeric program names / canned cycles/
Conrad - one input for automatic corner radius programming
Maths help with graphical interface
Auto load of maths solutions
Subroutine repeat of programmed events

Location: Poole

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
