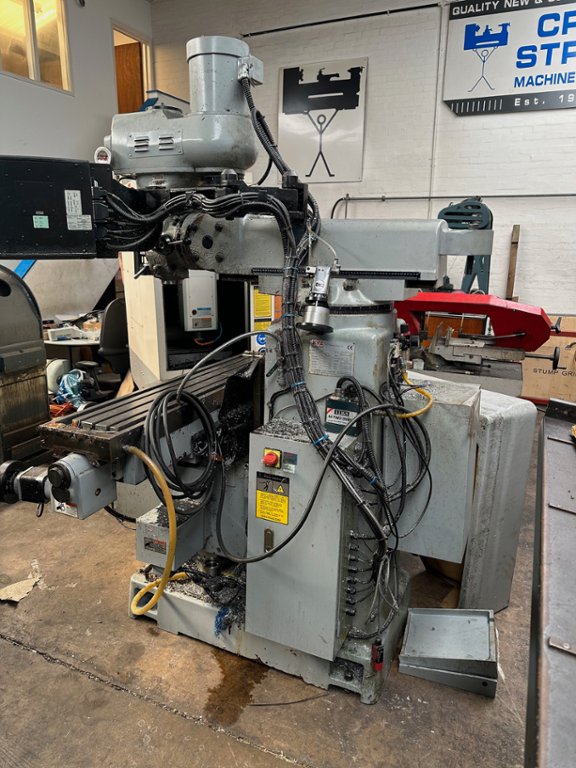

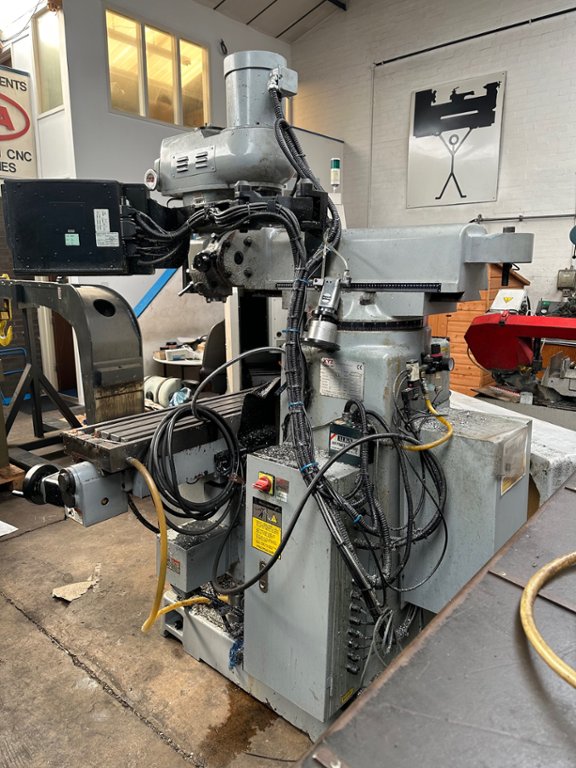

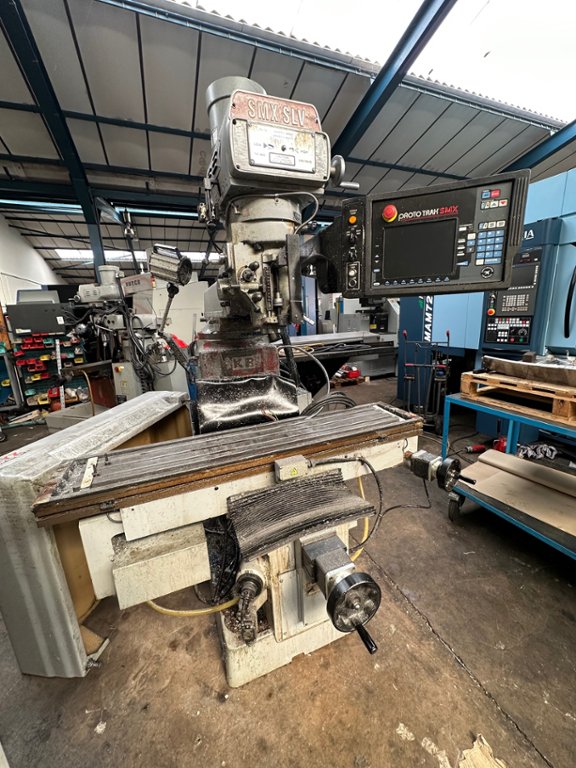

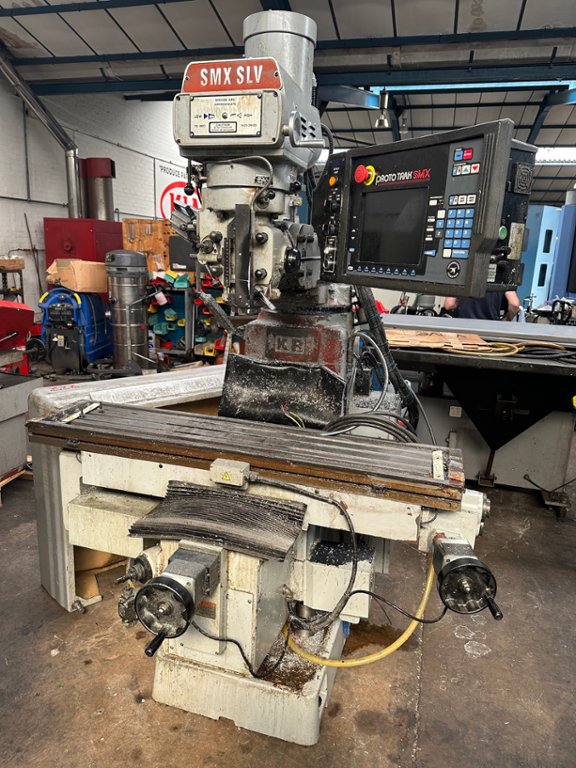

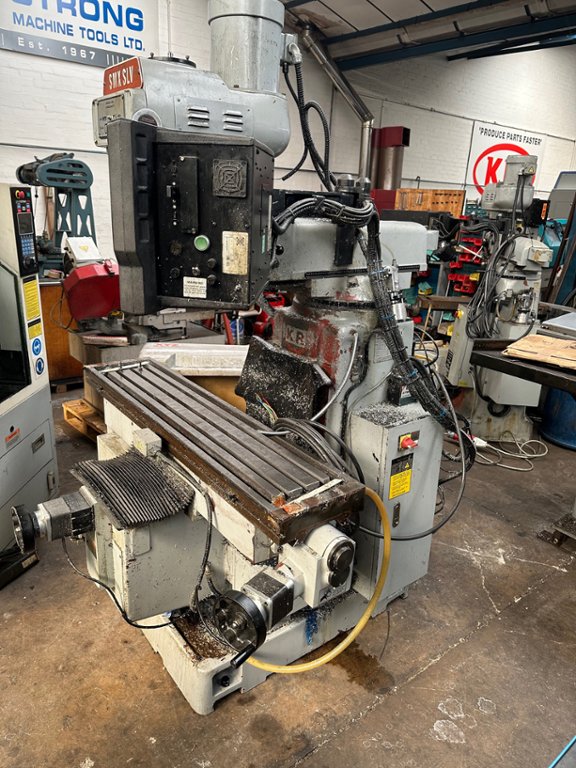

XYZ SMX SLV CNC Turret Milling Machine (2009)

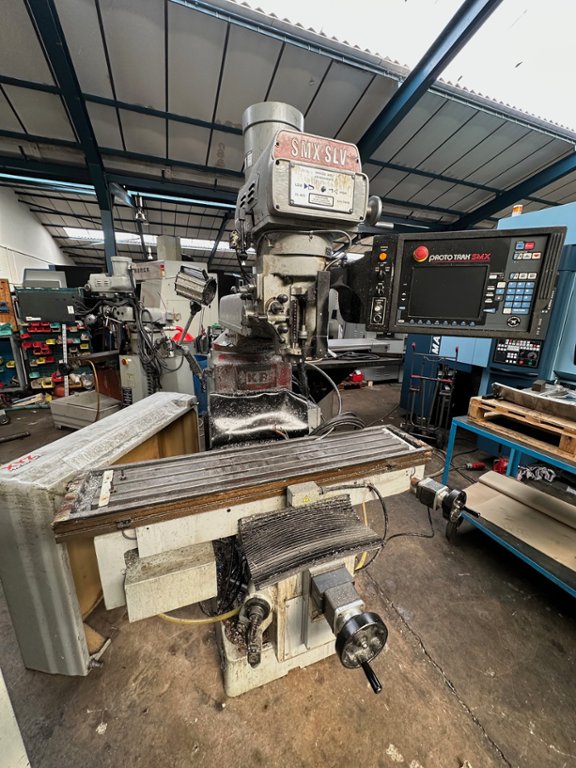

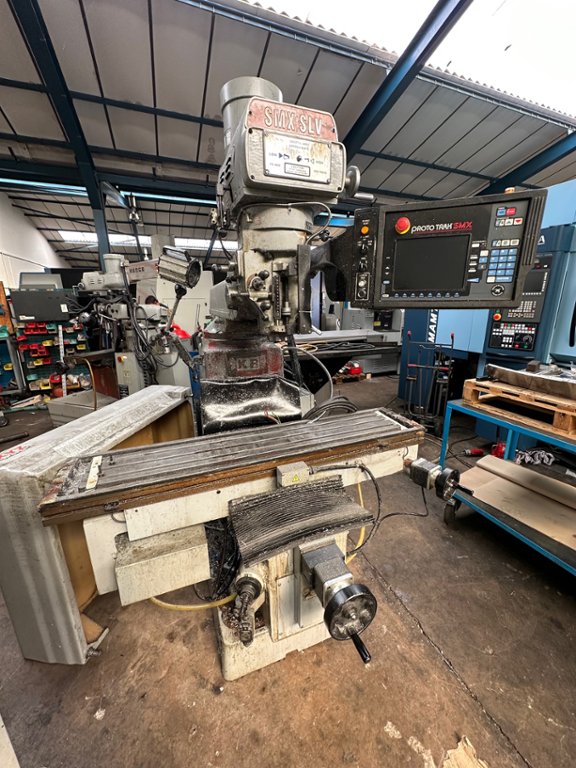

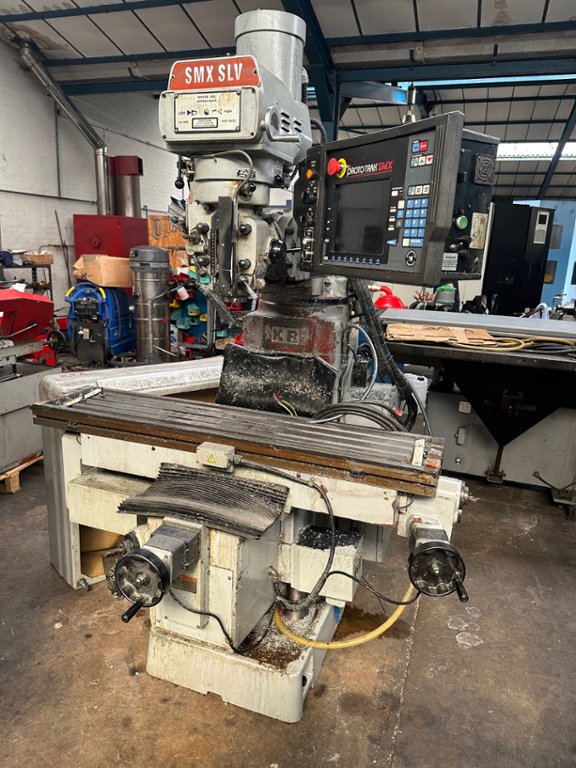

Lot 4 - XYZ SMX SLV CNC Turret Milling Machine (2009)

Description:

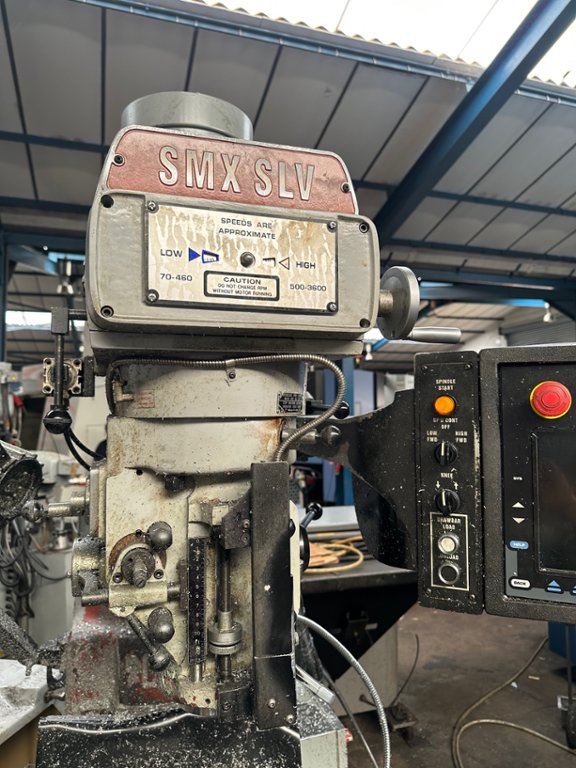

Spindle - 5HP Variable Spindle Speed, Spindle Speeds - 70 - 3600 RPM, Speed Ranges - 2 Ranges

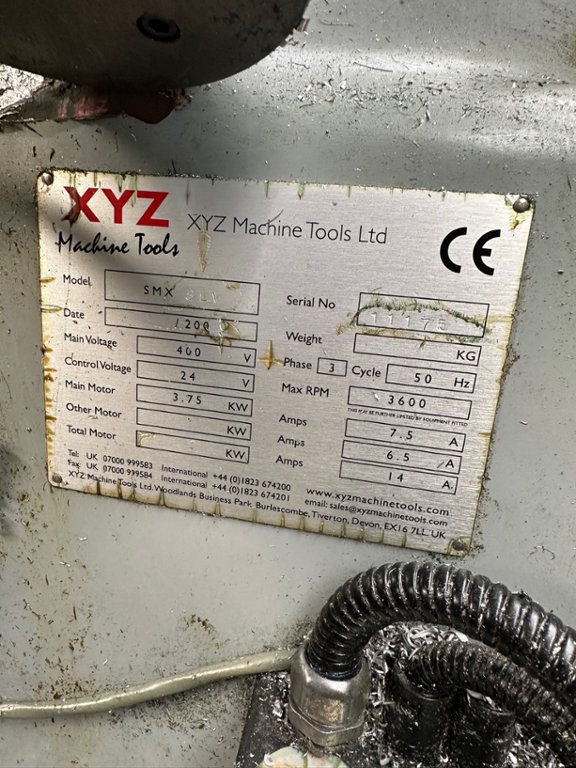

Spindle Taper - ISO 40, Quill Diameter - 105mm, Table Size - 1473mm X 305mm, T Slots - 3 off, T Slot Size - 15.9mm, X Axis Table Travel - 1000mm, Y Axis Table Travel - 410mm, Knee Vertical Travel - 413mm - Powered, Quill Travel - 127mm, Ram Travel - 450mm, Swivel on Turret - 360°, Head Tilt Front to Back - +45° / -45°, Head Tilt Left to right - +90° / -90°, Max Throat Depth - 700mm, Max Table Load - 580Kg, No of Quill Feeds - 3, Slideway Type - Hardened & Ground Boxway, Working Height (without riser blocks) - 2330mm, Power Requirements - 18A, Air Requirements - 6 bar (220 L/min)

Footprint (without travels) 2173mm X 1818mm X 2302mm

Whilst every effort has been made to ensure that the above information is accurate it is not guaranteed. We advise prospective purchasers to check any vital details

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
