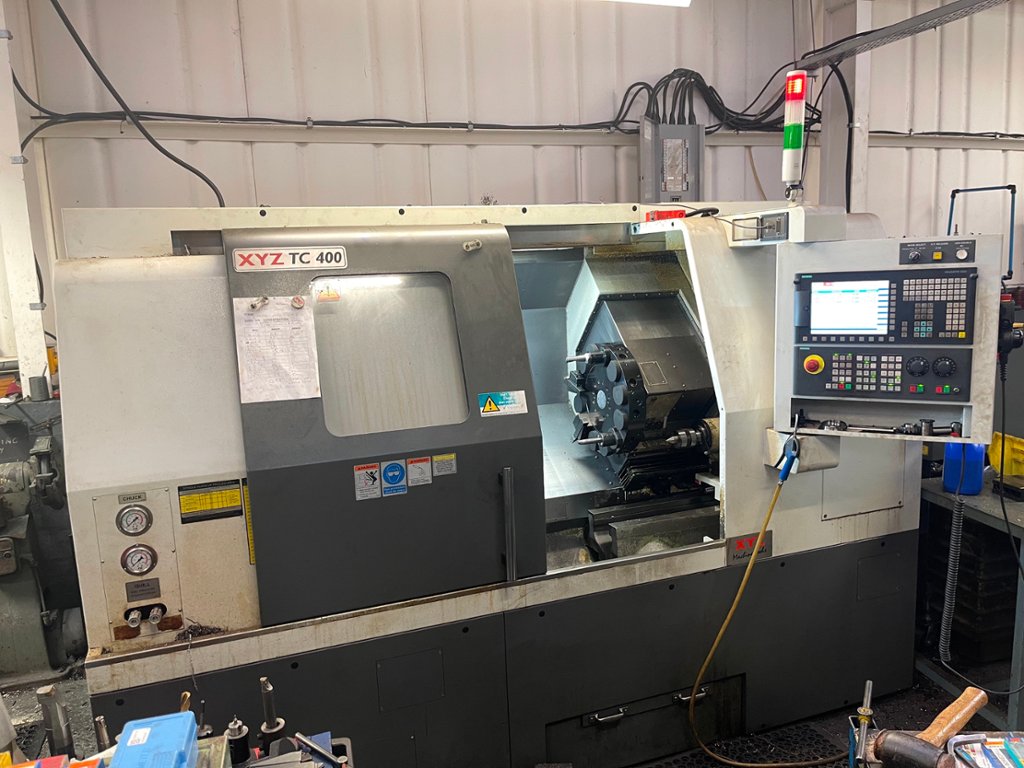

XYZ TC400 CNC Lathe (2018)

Lot 1 - XYZ TC400 CNC Lathe (2018)

Description:

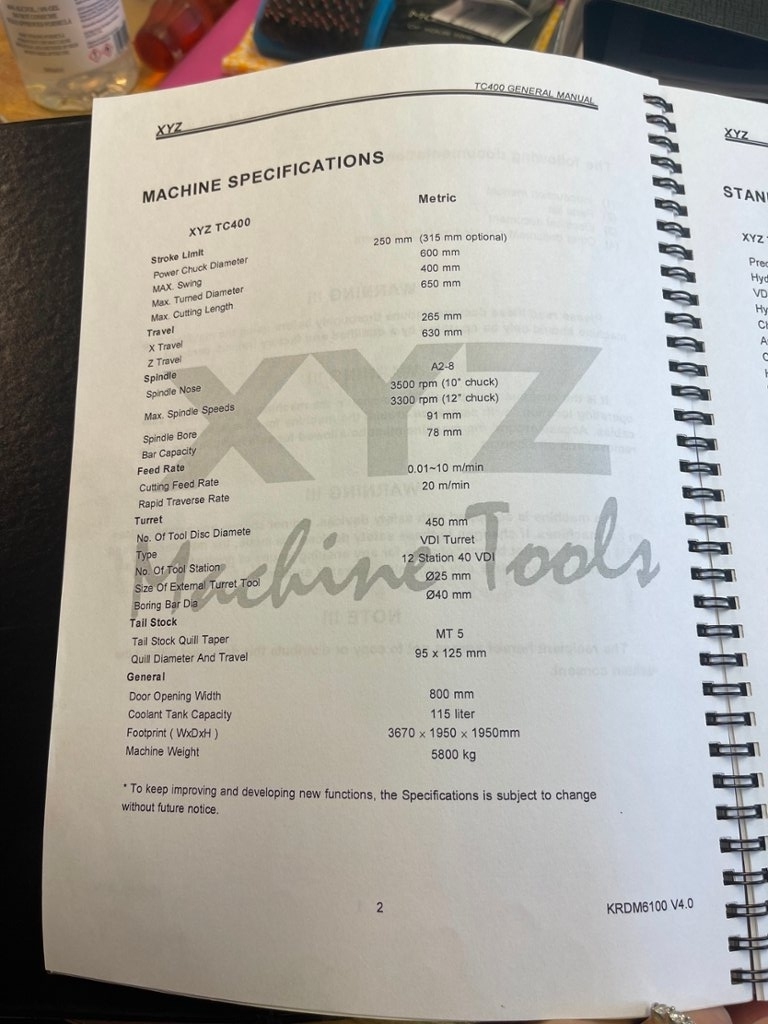

Stroke Limit

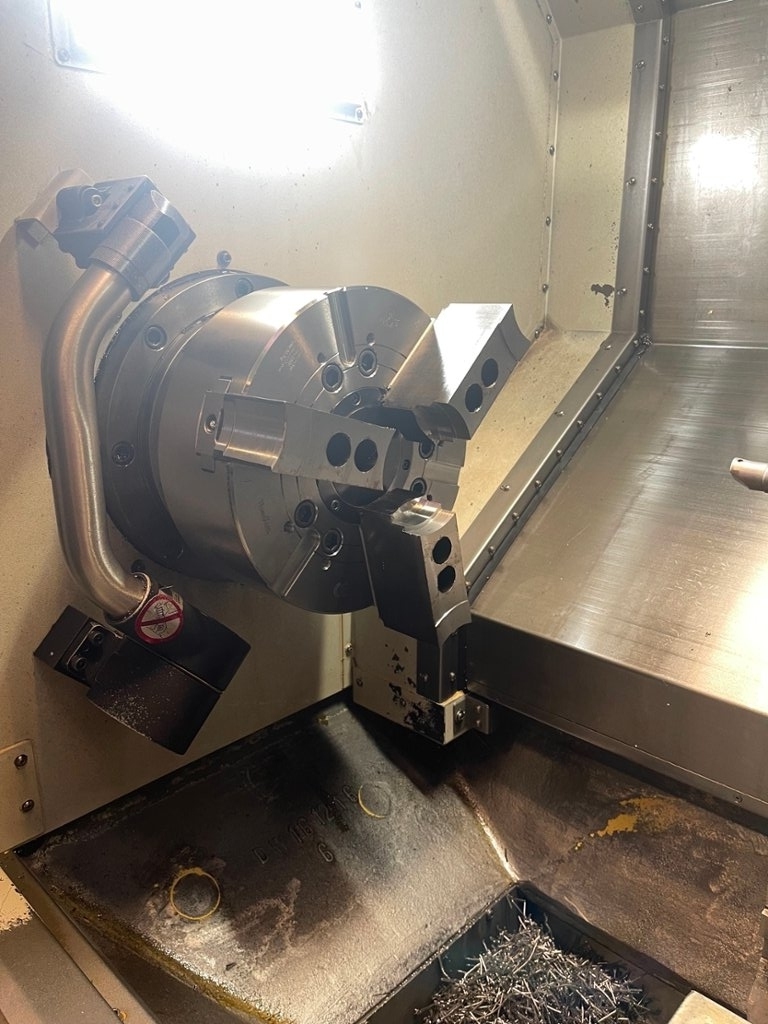

Power chuck diameter - 250mm (315mm optional), Max swing - 600mm, Max turned diameter - 400mm, Max cutting length - 650mm

Travel

X Travel - 265mm, Z Travel - 630mm

Spindle

Spindle nose - A2-8, Max spindle speeds - 3500rpm (10" chuck) or 3300rpm (12" chuck), Spindle bore - 91mm, Bar capacity - 78mm

Feed Rate

Cutting feed rate - 0.01 ~ 10 m/min, Rapid traverse rate - 20 m/min

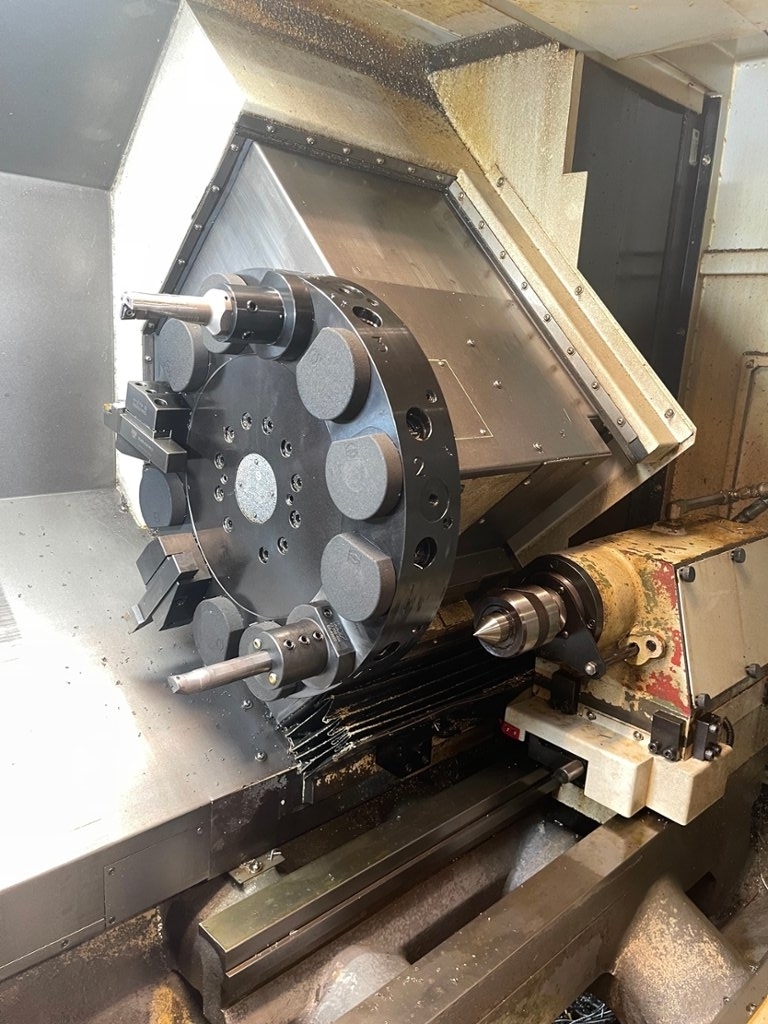

Turret

No. of tool disc diameter - 450mm, Type - VDI Turret, No of tool station - 12 station 40 VDI, Size of external turret tool - 25mm, Boring bar diameter - 40mm

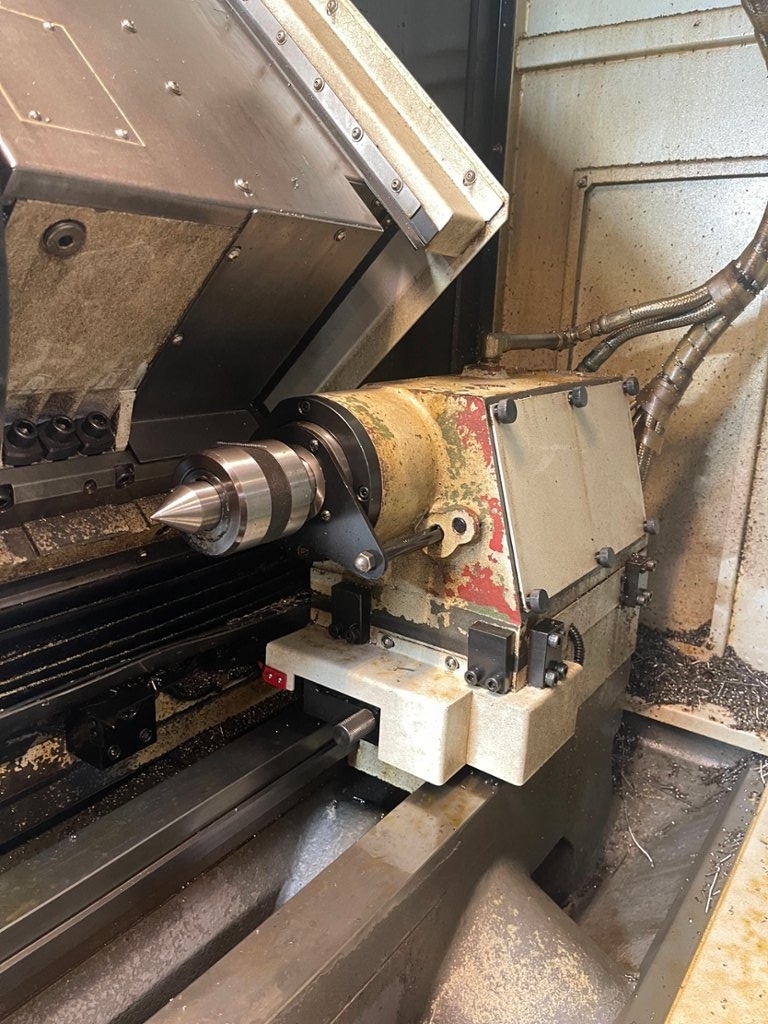

Tail Stock

Tail stock quill taper - MT5, Quill diameter & travel - 95 x 125mm

Door opening width - 800mm

Coolant tank capacity - 115 litre

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
