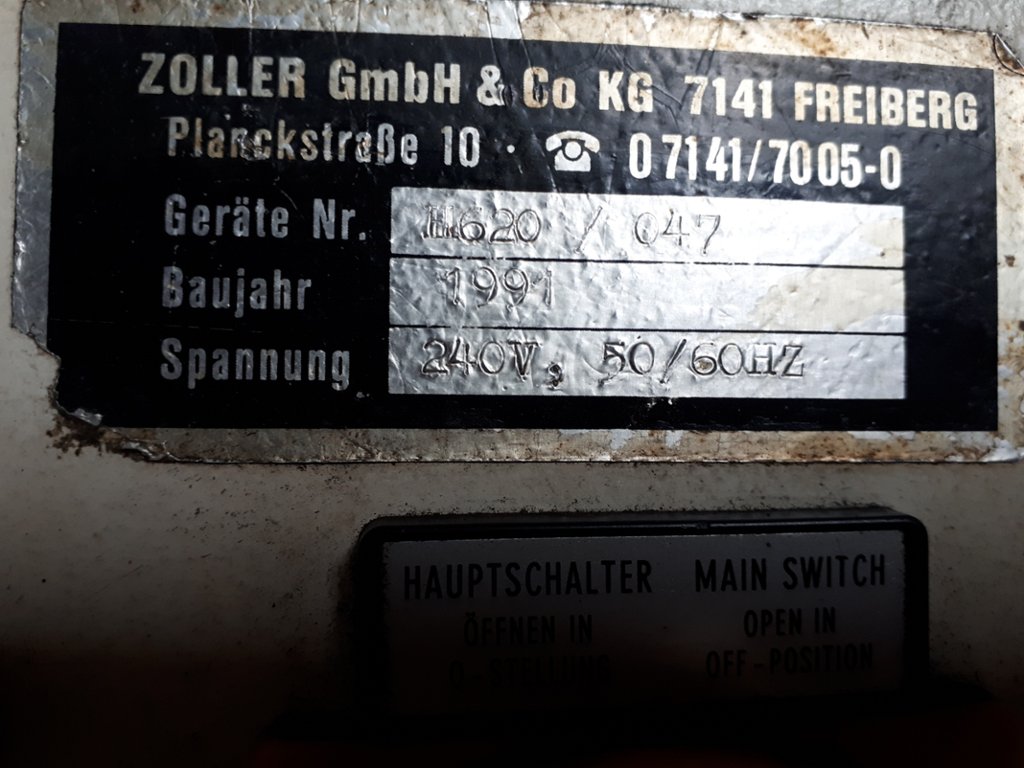

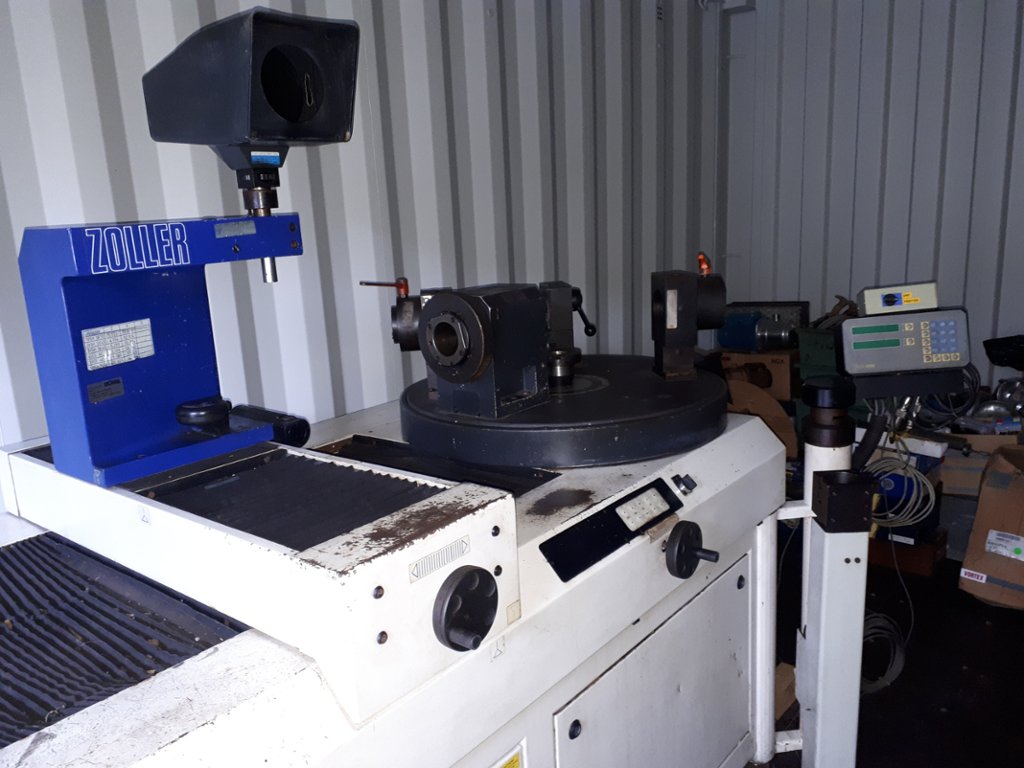

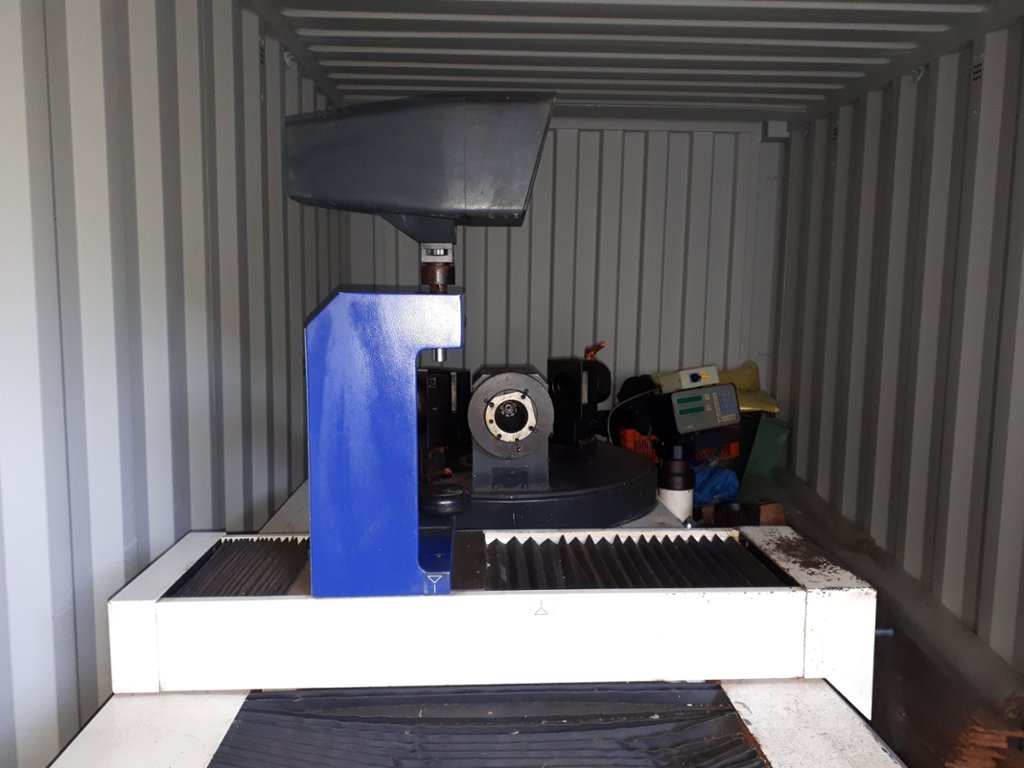

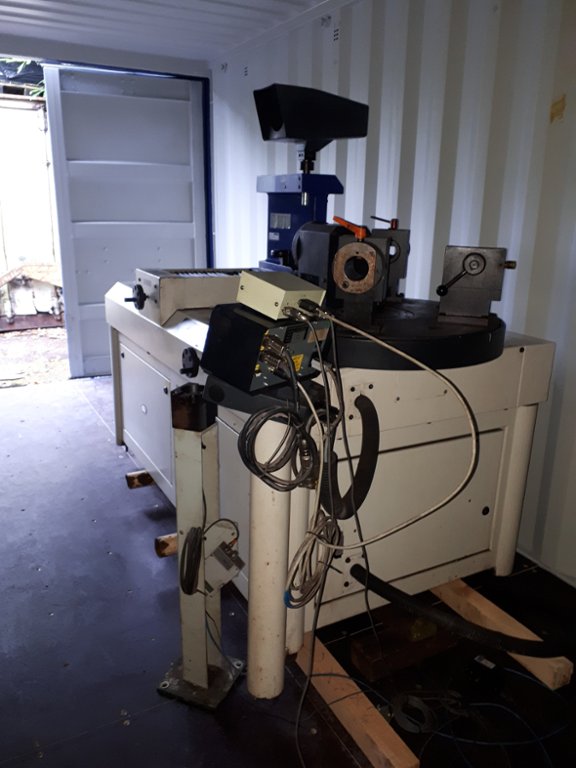

Lot 5 - Zoller H620 Tool Setting Machine (1991)

Description:

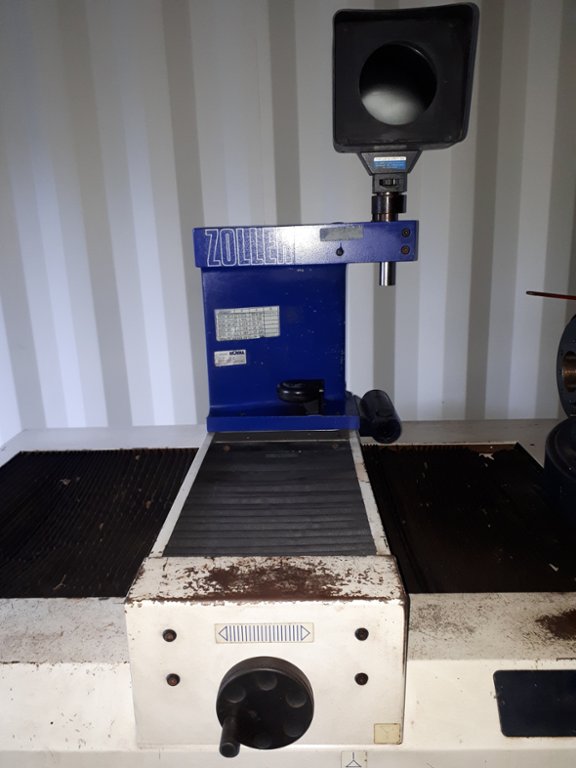

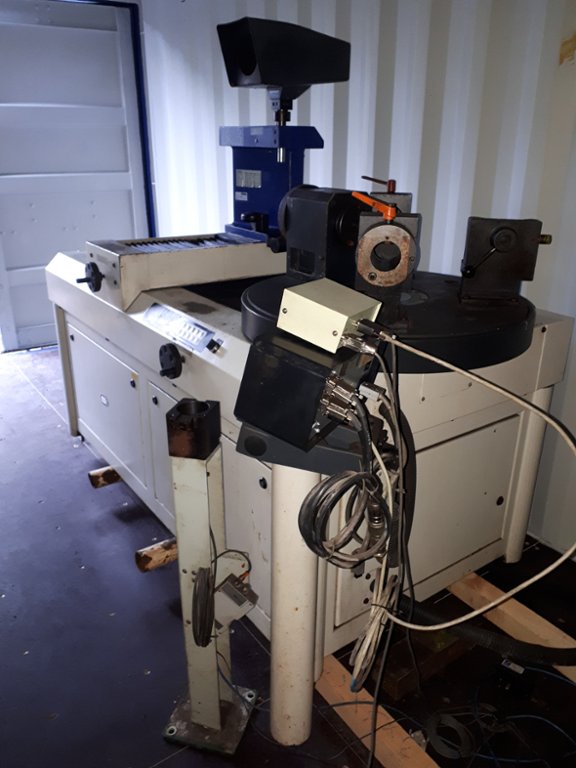

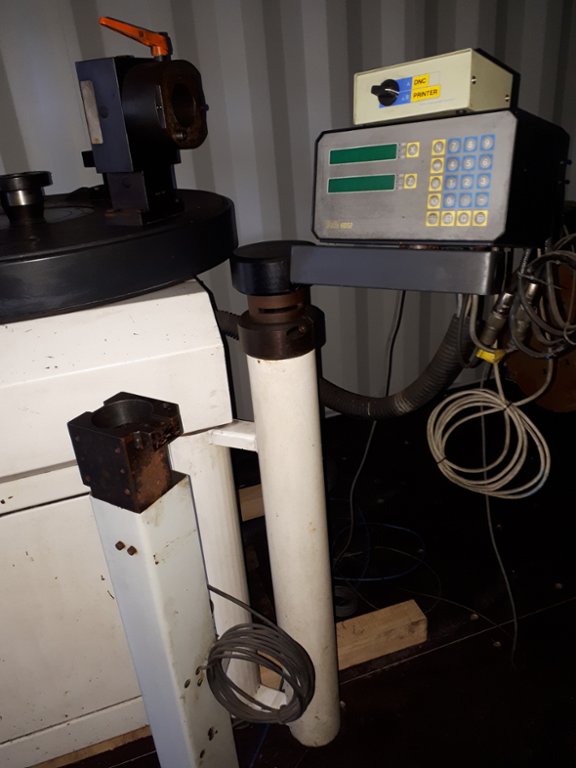

It is a tool presetter for CNC tooling for lathes, horizontal and vertical machining centres.

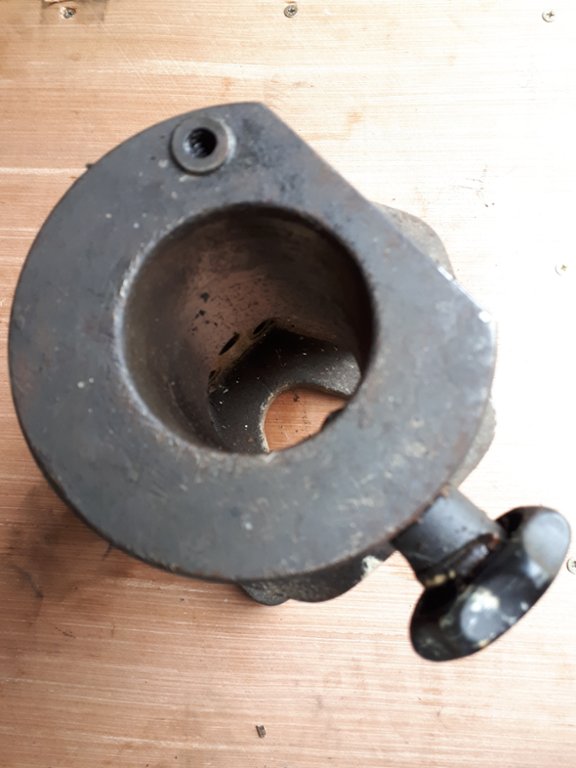

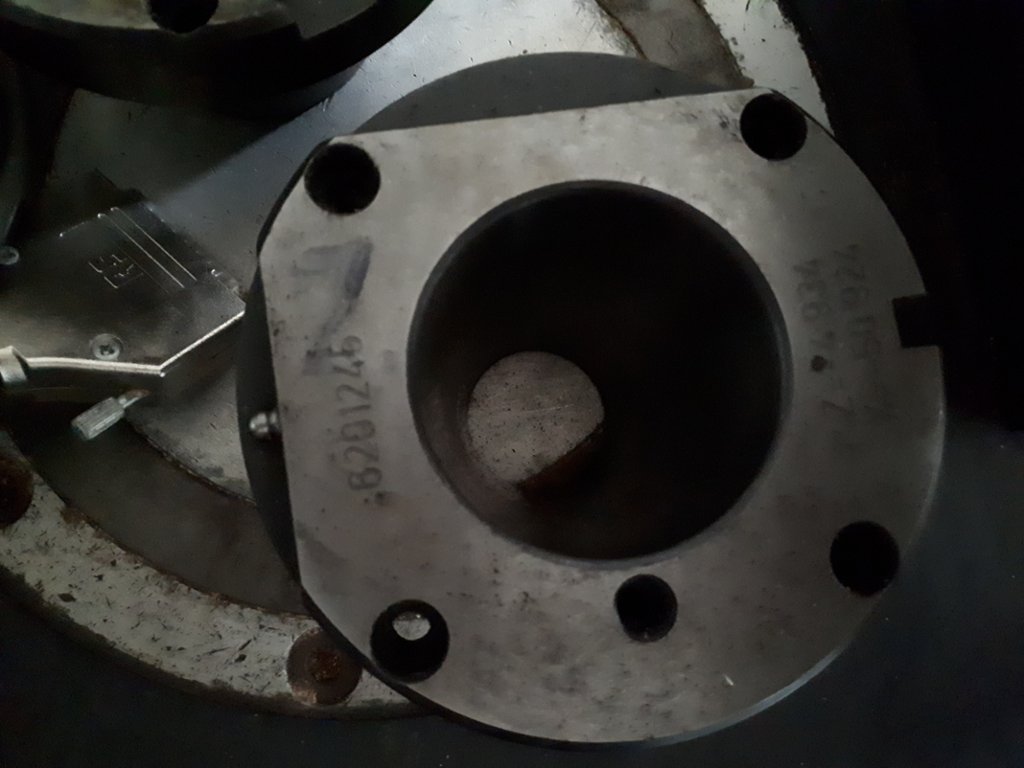

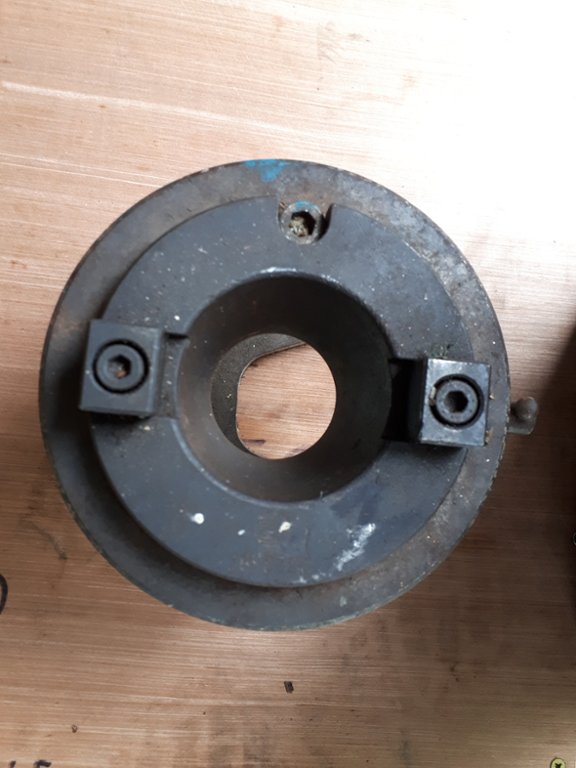

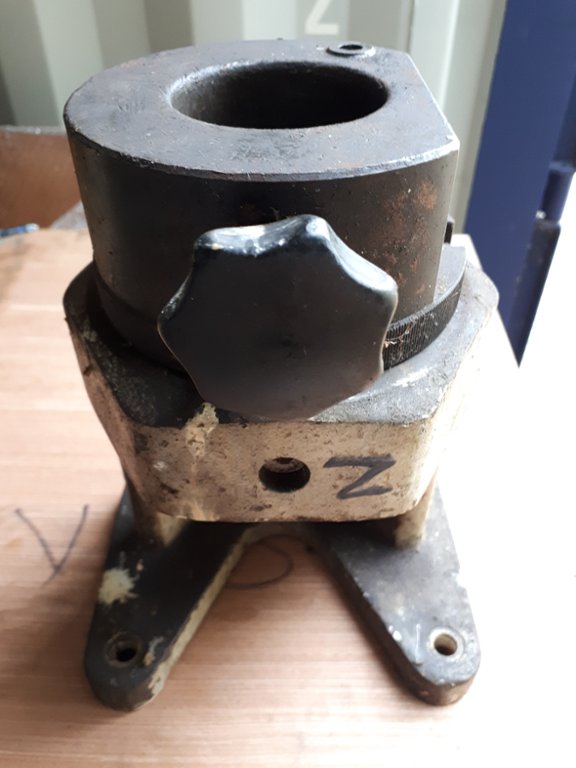

There is the Zollar tool holder and collars with the machine.

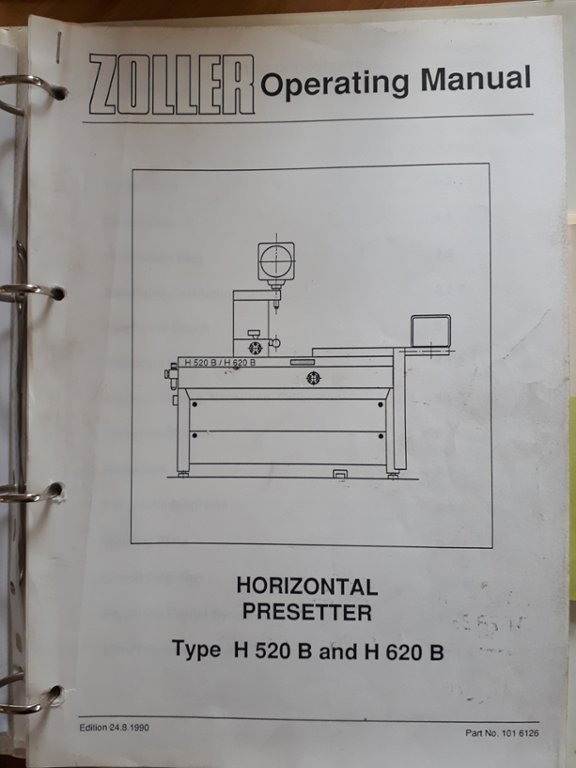

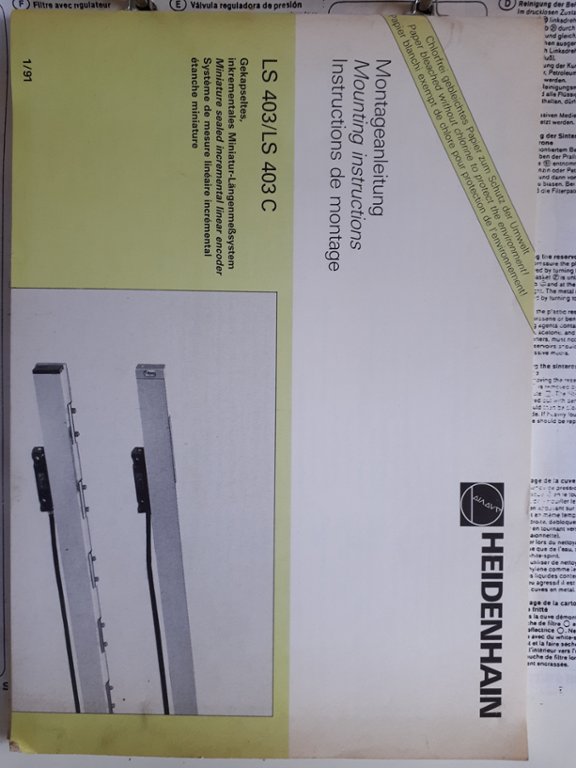

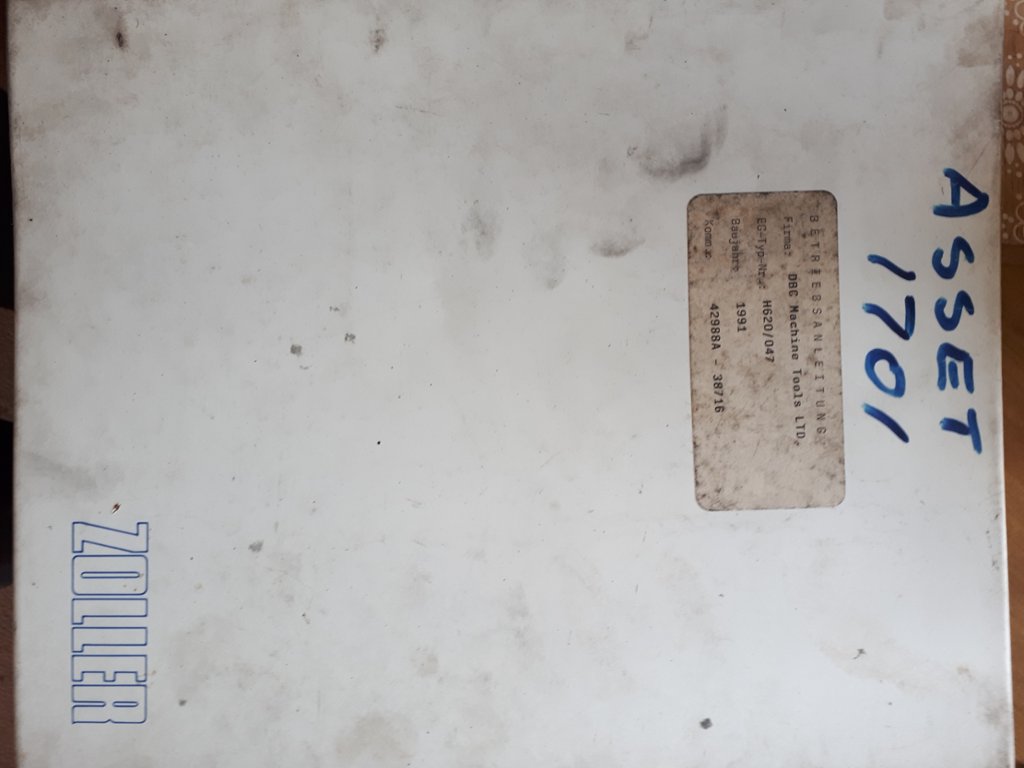

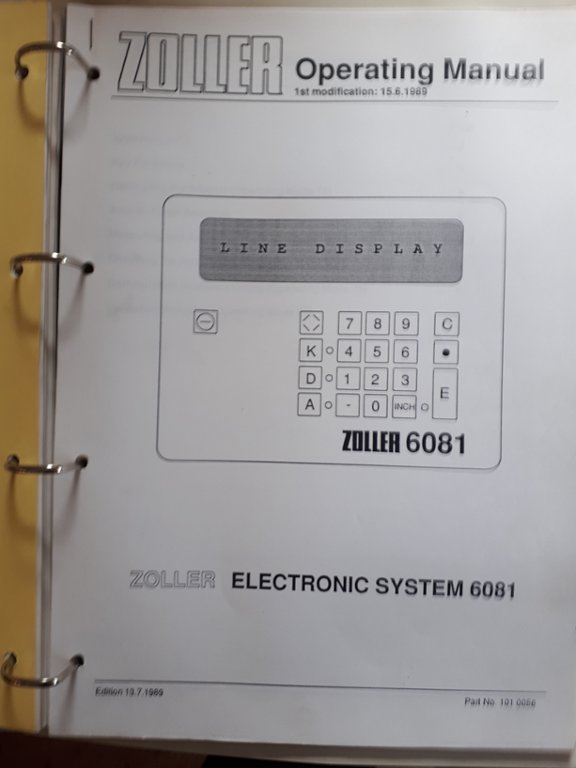

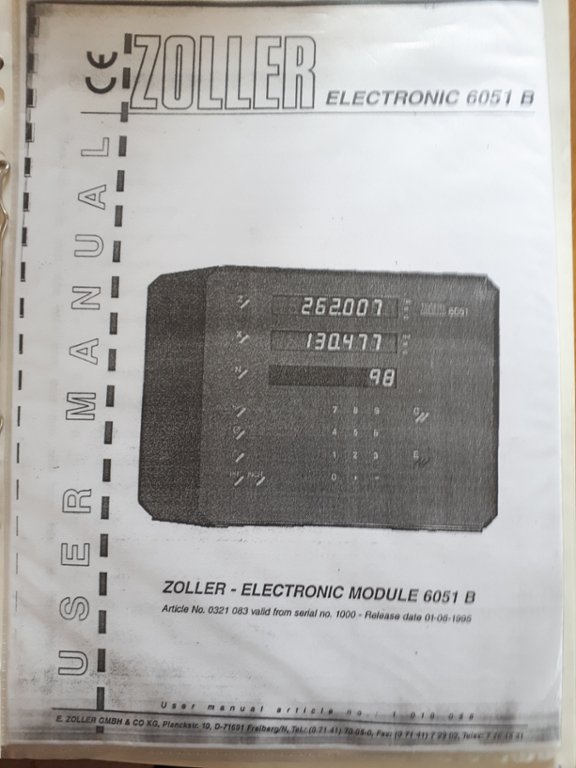

The machine comes with its original manuals
The manuals have the pneumatic and electrical circuit diagrams, set up, measuring, calibration and operating instructions.

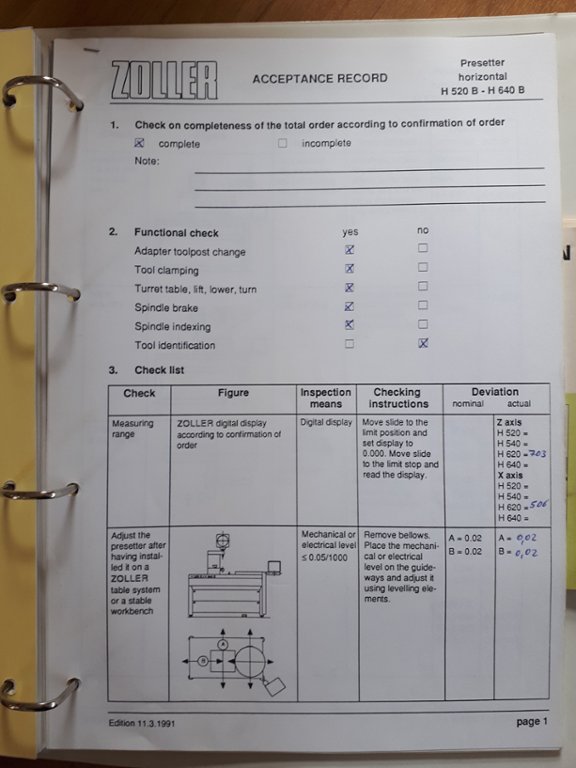

There are device plan, foundation plan, installation instructions and functional checks.

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.

Specifications:

The specifications given are to the best knowledge of the auctioneer. However, the accuracy is not guaranteed and should be verified by the buyer prior to bidding.

240v power and Compressed air at 4-6 Bar
X - Measuring range is 500mm
Z - measuring range is 680
Rt = 745(Turret Table diameter.)
It is equipped with anti-friction bearings

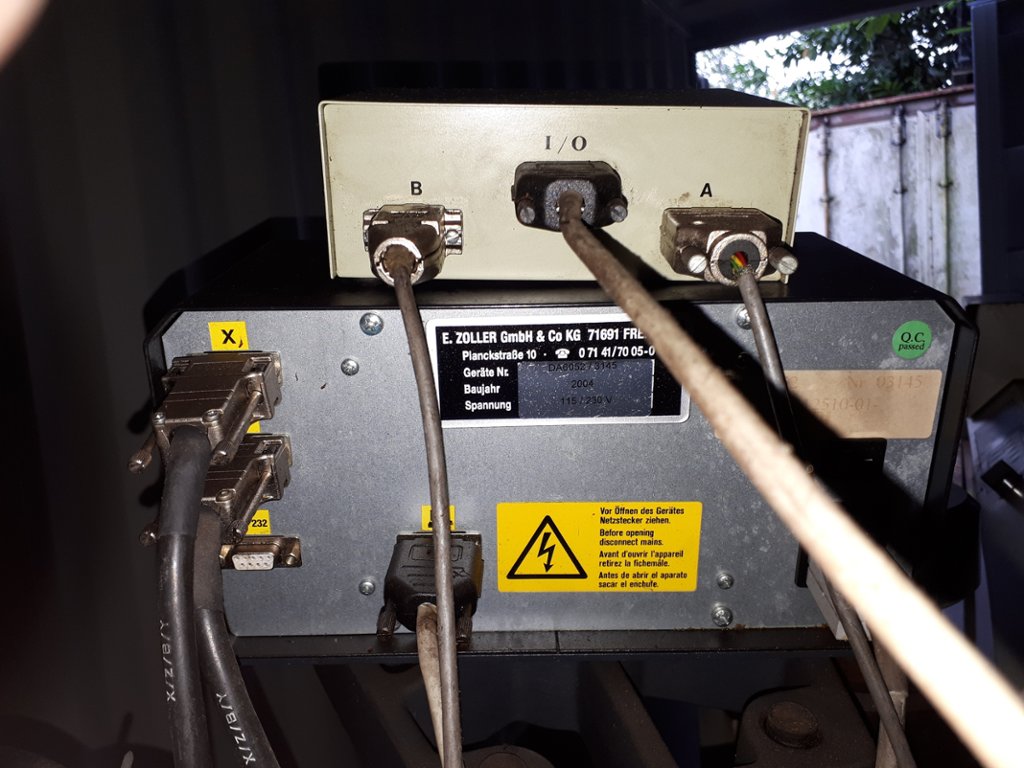

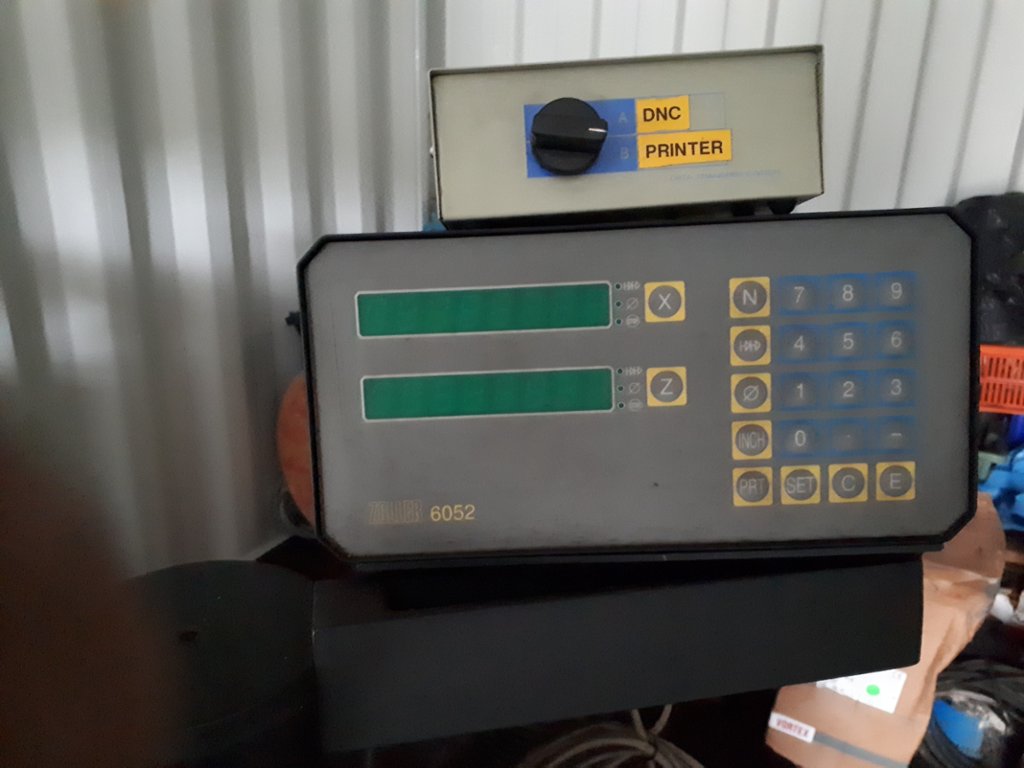

It is equipped with Heidenhain measuring system.
It requires the same skill set as any CNC setter operator may already have to master any functions and setting operations.

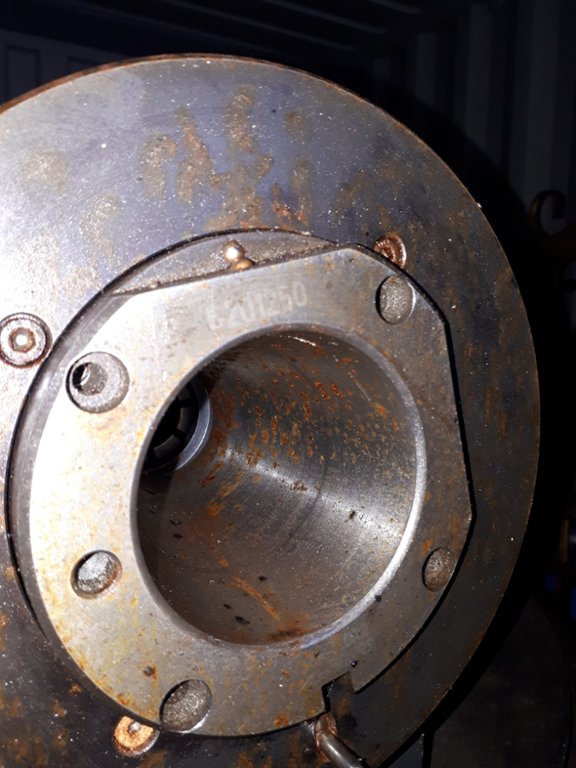

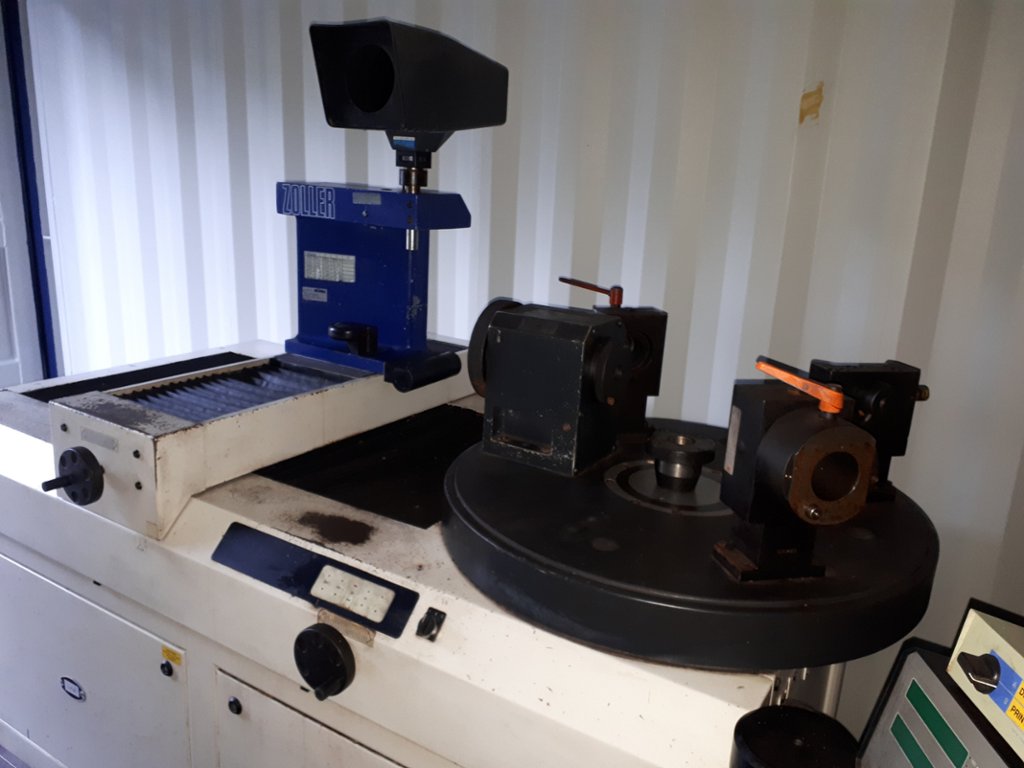

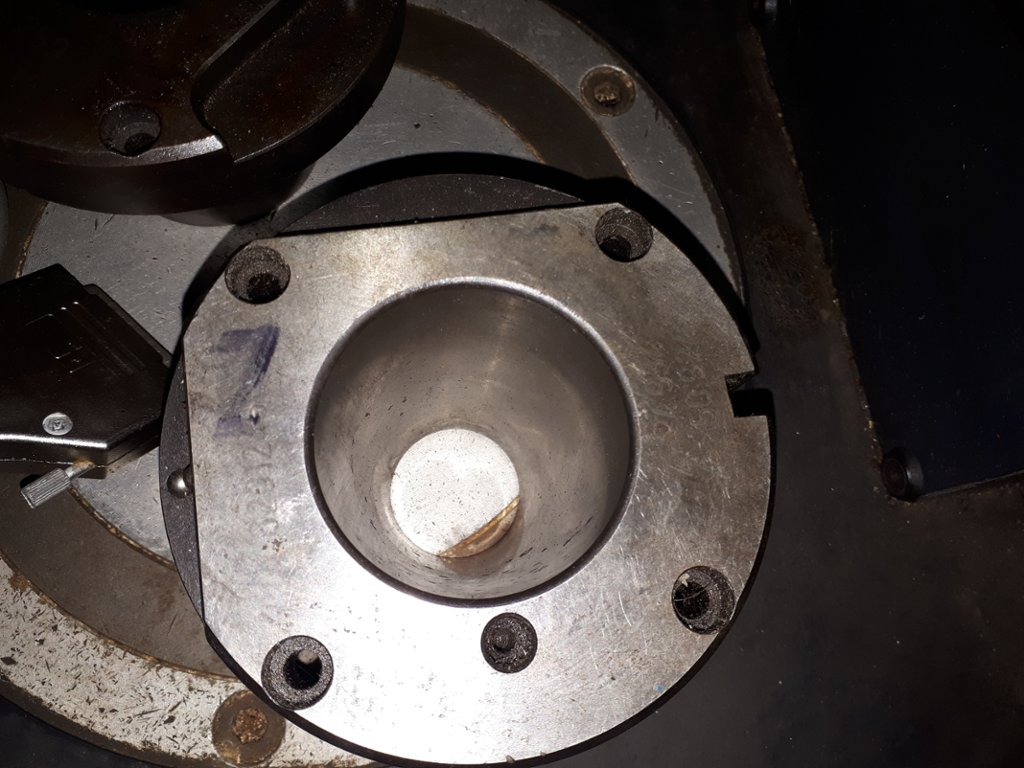

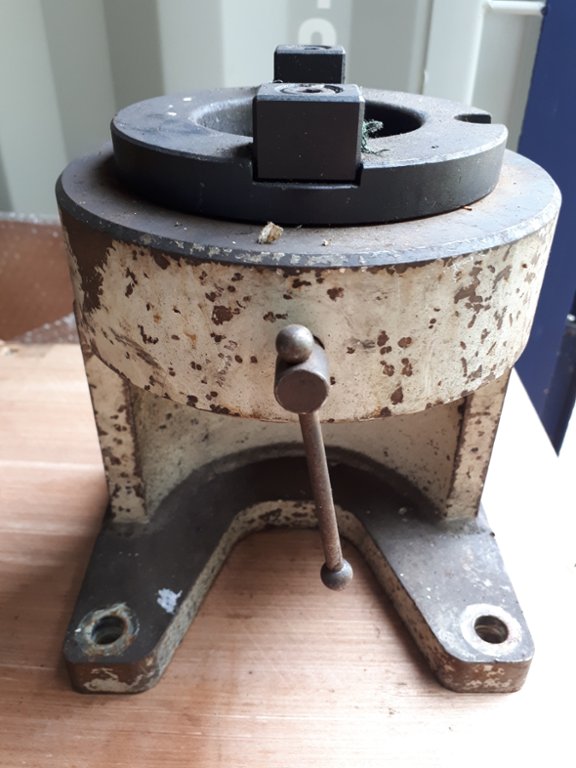

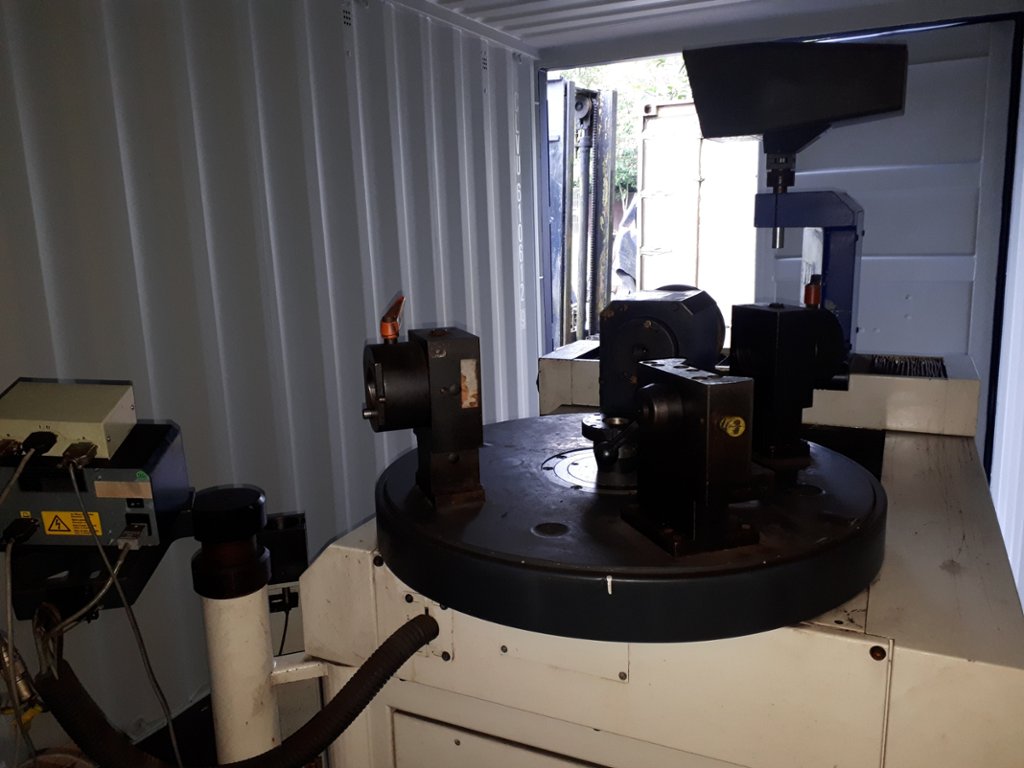

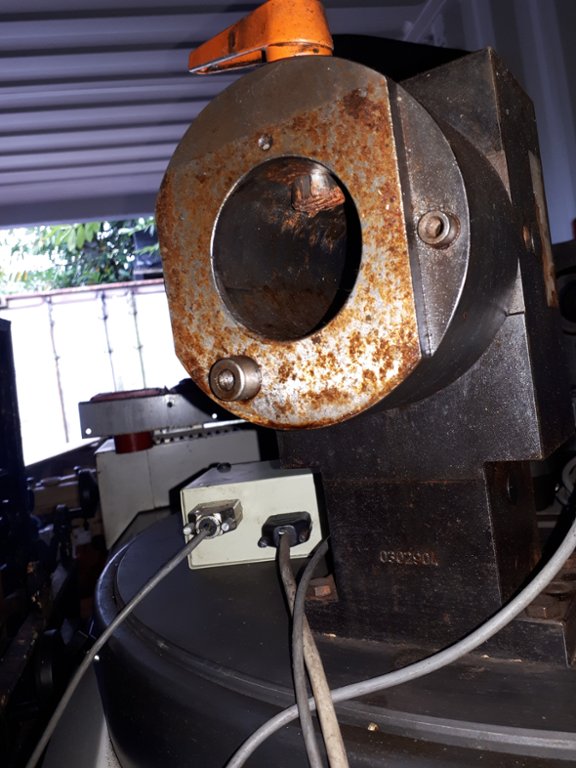

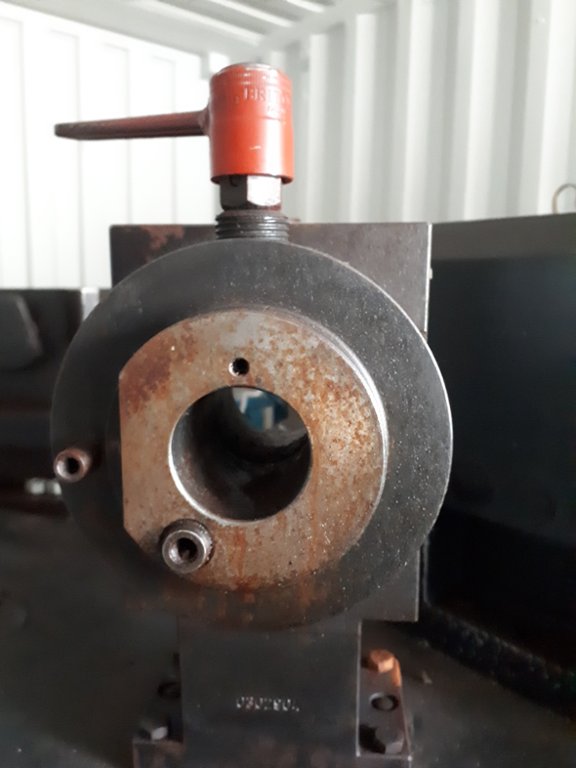

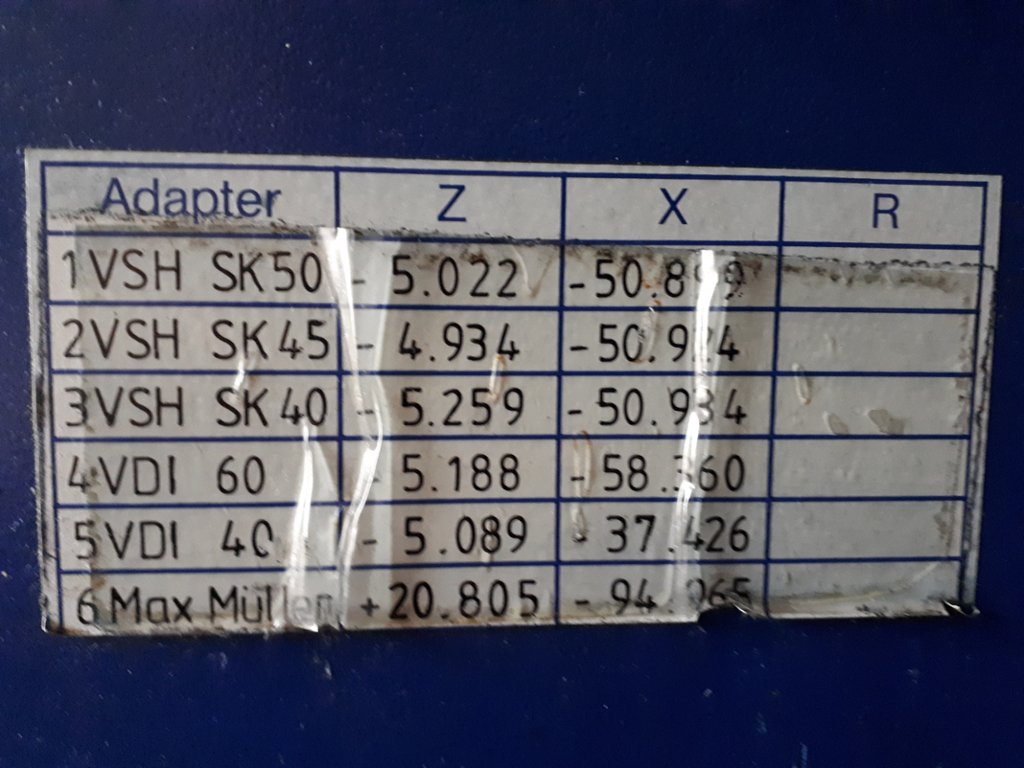

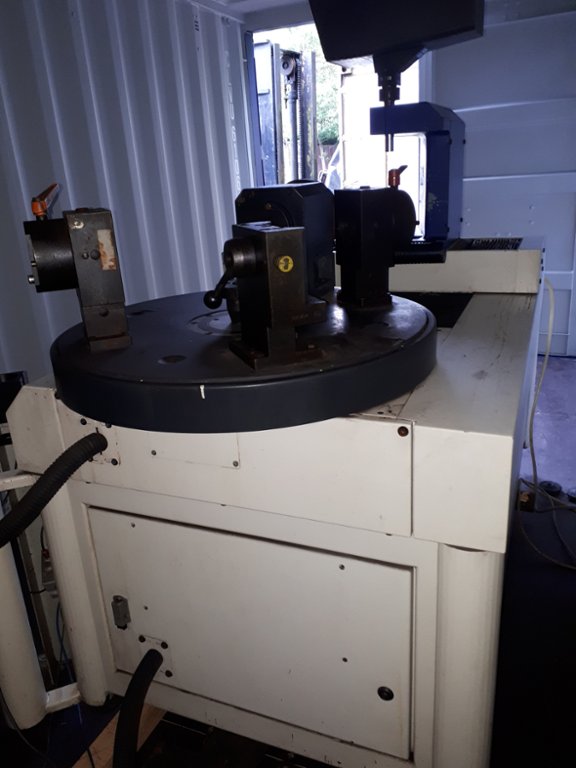

The turret table is equipped with a number of tool setting fixtures to cater for the following tooling
SK 50 fixture for setting and measuring (International tooling for vertical and horizontal machining centres)
SK 45 fixture for setting and measuring (International tooling for vertical and horizontal machining centres)
SK 40 fixture for setting and measuring (International tooling for vertical and horizontal machining centres)

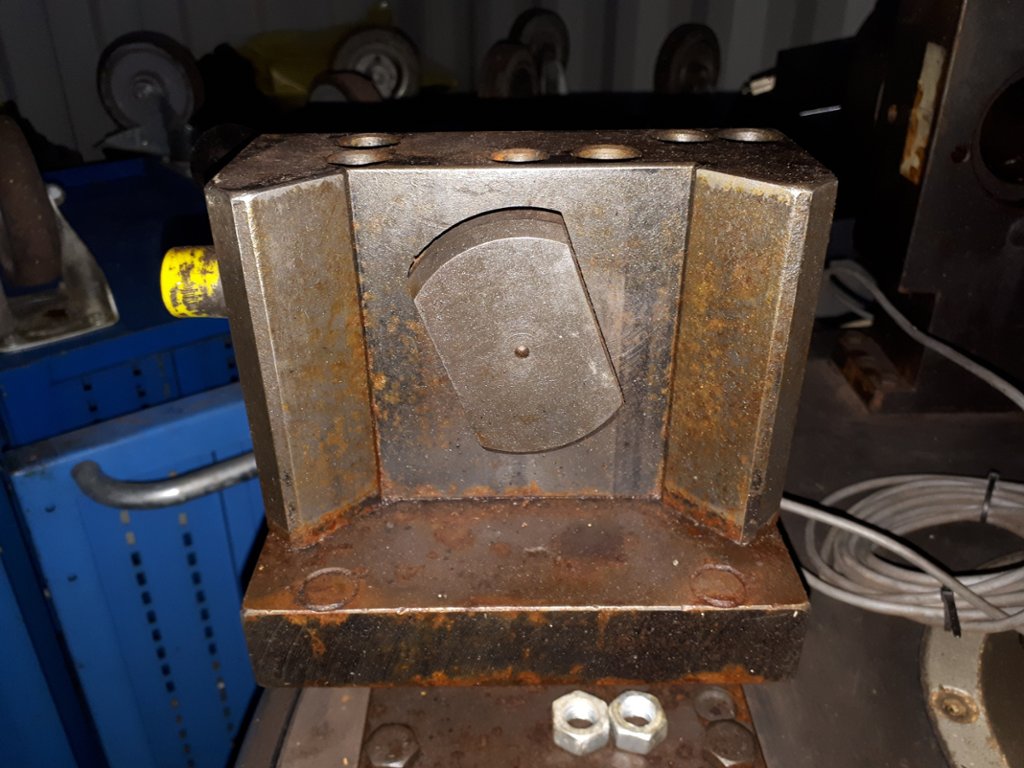

VDI 60 Fixture for lathe type turret tooling
VDI 50 Fixture for lathe type turret tooling
Max Muller





Bid information

Time remaining

DAYHRSMIN
151632

15 Oct 2020 15:00:00 BST

Opening bid: £800

Bids: 0



Your Bid:

£


Minimum increment: £50

Autobid:

£

Final remove by date: 29/Oct/2020

Location: Nottingham

Lot location

Transport information

  • Other Transport Details: Loaded to transport £125
